  11. Washdown Motor, 3HP, 145JM Frame, 16-1/2inL

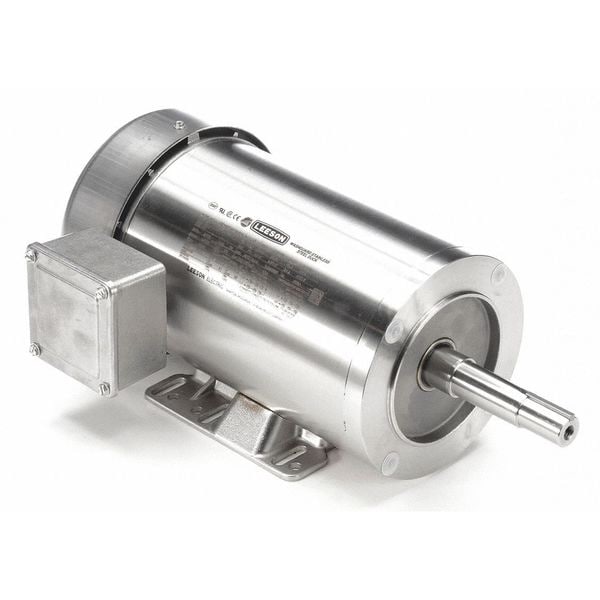

Leeson Washdown Motor, 3HP, 145JM Frame, 16-1/2inL 122213.00 - main

Washdown Motor, 3HP, 145JM Frame, 16-1/2inL

  • Mfr # 122213.00

  • Zoro # G4577837

product price: $1,580.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
145JM
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
122213.00
Zoro #
G4577837
UPC #
-
Country of Origin
United States

Dimensions

Body Dia.
6.56 in
Overall Length
16 1/2 in
Shaft Length
4 1/4 in
Shaft Dia.
7/8 in
Length Less Shaft
12 1/4 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 7/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
3 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
145JM
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Shaft Material
Stainless Steel
Full Load Amps
8.0/4.0 A
Nameplate RPM
3,490 RPM
Motor Application
General Purpose
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
CC Number
CC005A
Frame Material
Stainless Steel
Max. Ambient Temp.
40 Degrees C
Drain Plugs
None
Nominal Efficiency
86.5 %
Motor Mounting Type
C-Face, Rigid Base
Duty
Continuous
Includes
Removable Hydrophobic Breathers In Opposite Shaft Endbell
Motor Bearings
Ball
Application
Washguard
Hz
60/50 Hz
Motor Service Factor
1.15
Ins. Class
F
Motor Mounting Position
Horizontal
NEMA Design
B
Standards
BISSC, CE, CSA, UL
Endshields
Stainless steel
Motor Shaft Design
Keyed
Inverter Rated
Inverter Rated
Motor Shaft Rotation
CW/CCW
Conduit Box
Oversized Stainless Steel BICB and Threaded Cover with O Ring
Green Certification or Other Recognition
NEMA Premium(R) Rated
Voltage @ 50Hz
460V AC
Endshield Material
Stainless Steel
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Weight
67 lb
Full Load Amps @ 50Hz
8.0/4.0 A
Conduit Box Location
Exterior
No. of Speeds
1
Removable Base
No
Duty Cycle
Continuous
Inverter Rating
10:1
Series
Washguard
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 3,490 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 8.0/4.0 A, 145JM Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
