Leeson

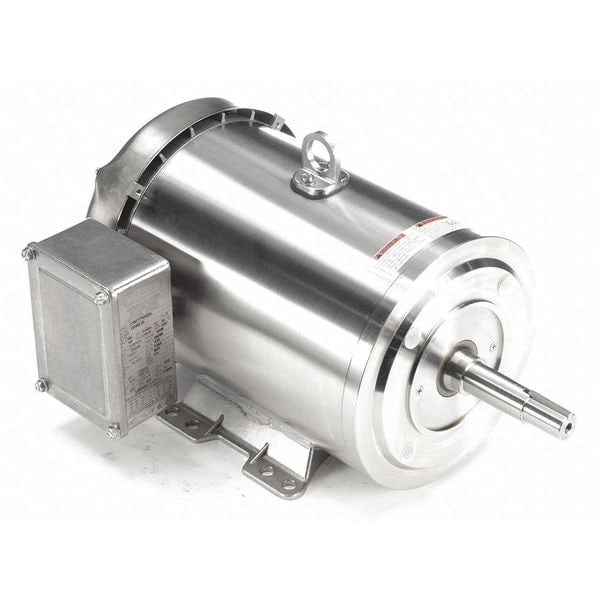

Washdown Motor, 5HP, 184JM Frame, 17-1/4"L

product price: $1,859.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design 3-Phase
  • Phase Three
  • HP 5
  • RPM Range 1,701-1,800
  • Voltage 230/460V AC
See all product information

Product Information

Dimensions

Body Dia. 8.38 in
Length Less Shaft 13 in
Shaft Length 4 3/16 in
Overall Length 17 1/4 in
Shaft Dia. 7/8 in
Bolt Circle Dia. 5 7/8 in
Manufacturers Warranty Length 1 yr

Details

Item Washdown Motor
Motor Design 3-Phase
Phase Three
HP 5
RPM Range 1,701-1,800
Voltage 230/460V AC
Frame 184JM
Motor Frame Material Stainless Steel
Motor Thermal Protection None
Motor Enclosure Design Totally Enclosed Fan-Cooled
Includes Removable Hydrophobic Breathers In Opposite Shaft Endbell
Motor Shaft Rotation CWSE
Nameplate RPM 1,760
Motor Shaft Design Keyed and Drilled On Center
Motor Application Washdown
Frame Material Stainless Steel
Max. Ambient Temp. 40 Degrees C
Motor Mounting Type Rigid Base
CC Number CC005A
Endshields Stainless steel
Shaft Material Stainless Steel
Standards BISSC, CE, CSA, UL
Nominal Efficiency 89.5 %
Ins. Class F
Motor Mounting Position Horizontal
Application Washguard
Motor Bearings Ball
Conduit Box Oversized Stainless Steel BICB and Threaded Cover with O Ring
NEMA Design B
Motor Service Factor 1.15
Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz 60/50 Hz
Full Load Amps 12.6/6.3 A
Drain Plugs None
Duty Continuous
Inverter Rated No
Green Certification or Other Recognition NEMA Premium(R) Rated
Duty Cycle Continuous
No. of Speeds 1
Voltage @ 50Hz 460V AC
Usable @ 208V No
Removable Base No
Motor Sub Application Crop Dryer
Full Load Amps @ 50Hz 12.6/6.3 A
Endshield Material Stainless Steel
Usable @ 200V No
Finish Unfinished
Weight 100 lb

Description

Washdown Motor, Three Phase, Motor Design 3-Phase, 5 HP, Nameplate RPM 1,760, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 12.6/6.3 A, 184JM Frame, Usable @ 208V No, Usable @ 200V No, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base
