Leeson

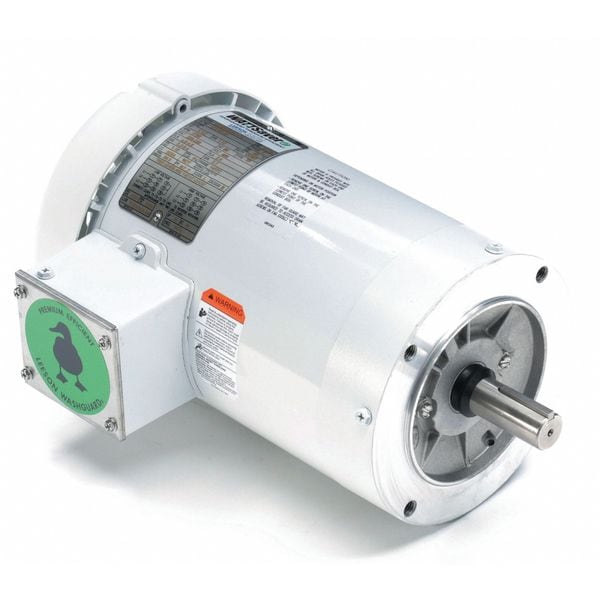

Washdown Motor, 60 Hz, 2 in. Shaft L, CWSE

original price: $637.99
7% off
new price: $586.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design 3-Phase
  • Phase Three
  • HP 1 1/2
  • RPM Range 1,701-1,800
  • Voltage 208-230/460V AC
See all product information

Product Information

Dimensions

Shaft Length 2 1/4 in
Shaft Dia. 7/8 in
Length Less Shaft 11 7/16 in
Overall Length 13 7/16 in
Body Dia. 7.38 in
Bolt Circle Dia. 5 7/8 in
Manufacturers Warranty Length 1 yr

Details

Item Washdown Motor
Motor Design 3-Phase
Phase Three
HP 1 1/2
RPM Range 1,701-1,800
Voltage 208-230/460V AC
Frame 145TC
Motor Frame Material Steel
Motor Thermal Protection None
Motor Enclosure Design Totally Enclosed Fan-Cooled
Nameplate RPM 1,750
Nominal Efficiency 86.5 %
Motor Application Washdown
Hz 60 Hz
Motor Shaft Rotation CCW, CW
Application General Purpose
CC Number CC005A
Motor Service Factor 1.15
Full Load Amps 208-230/460 A
Motor Bearings Ball
Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Frame Material Rolled steel
Max. Ambient Temp. 40 Degrees C
Motor Mounting Type Face
Ins. Class F
Green Certification or Other Recognition NEMA Premium(R) Rated
Motor Shaft Design Keyed
Motor Mounting Position Horizontal
Standards BISSC Approved, CE, CSA Certified, UL Recognized, USDA Approved
NEMA Design B
Weight 43 lb
Usable @ 208V Yes
No. of Speeds 1
Finish Epoxy
Usable @ 200V No
Conduit Box Location Exterior
Duty Cycle Continuous

Description

Washdown Motor, Three Phase, Motor Design 3-Phase, 1 1/2 HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 208-230/460 A, 145TC Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CCW, CW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face, Motor Mounting Position Horizontal
