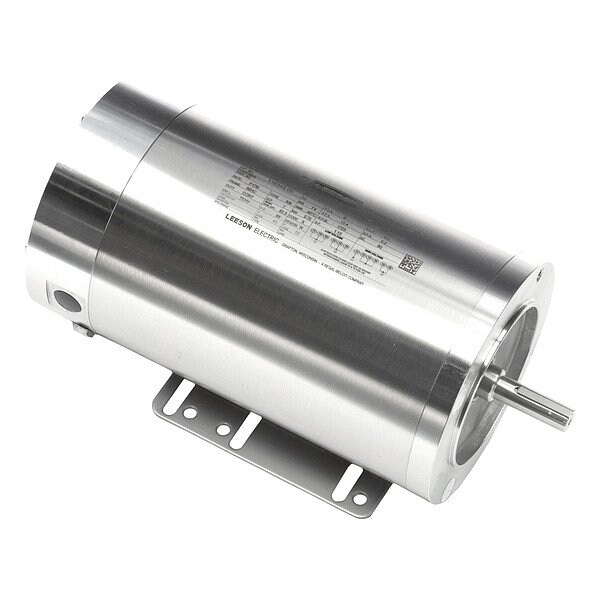

WashdownMotor, 1hp, 1725RPM, 115/230VAC
Mfr # 116348.00
Zoro # G511931227
product price: $1,384.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Capacitor-Start/Run
Phase
Single
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56HC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
116348.00
Zoro #
G511931227
UPC #
691720307458
Country of Origin
United States
Dimensions
Stud Size
3/8"-16
Shaft Dia.
5/8 in
Body Dia.
6.6 in
Length Less Shaft
11 13/16 in
Overall Length
13 11/16 in
Bolt Circle Dia.
5 7/8 in
Shaft Length
1 7/8 in
Description
Washdown Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 9.0/4.5 A, 56HC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design N, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
