  11. WashdownMotor, 1hp, 3450RPM, 230/460VAC

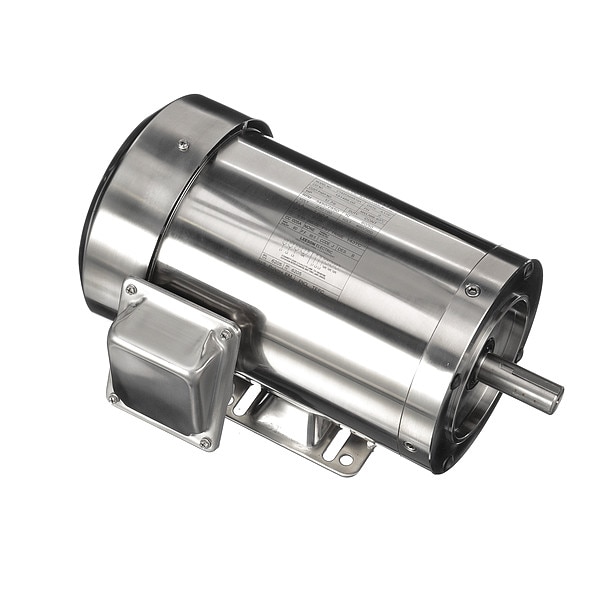

Leeson WashdownMotor, 1hp, 3450RPM, 230/460VAC 191486.00 - main

WashdownMotor, 1hp, 3450RPM, 230/460VAC

  • Mfr # 191486.00

  • Zoro # G500722959

product price: $1,287.75
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
143TC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
191486.00
Zoro #
G500722959
UPC #
691720991398
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Shaft Length
2 1/4 in
Body Dia.
6.5 in
Bolt Circle Dia.
5 7/8 in
Shaft Dia.
7/8 in
Length Less Shaft
11 1/2 in
Overall Length
13 5/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
143TC
Motor Frame Material
Stainless Steel
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan Cooled
Drain Plugs
(1) in Conduit Box
Bearing Protection
Shaft Shields
NEMA Design
B
Conduit Box Location
Exterior
Nominal Efficiency
80 %
No. of Speeds
1
Service Factor @ 50Hz
1.2
Weight
44 lb
Duty Cycle
Continuous
Full Load Amps
2.6/1.3 A
Shaft Material
Stainless Steel
Endshield Material
Stainless Steel
Ins. Class
F
Finish
Unfinished
Voltage @ 50Hz
208-230/460V AC
Motor Application
General Purpose
Motor Shaft Design
Keyed
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
HP @ 50Hz
1 hp
Usable @ 208V
Usable at 208V
Full Load Amps @ 50Hz
2.9-2.6/1.3 A
Removable Base
No
Hz
60/50 Hz
RPM @ 50Hz
3,450 RPM
Inverter Rated
Inverter Rated
Nameplate RPM
3,450 RPM
Standards
BISSC Certified, CE, CSA Certified, UL Recognized
Usable @ 200V
Not Usable at 200V
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Ball
Motor Mounting Position
Horizontal
Motor Shaft Rotation
CW/CCW
Motor Mounting Type
C-Face
Motor Service Factor
1.2
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.6/1.3 A, 143TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
