  11. WashdownMotor, 2hp, 1745RPM, 145TC, 575VAC

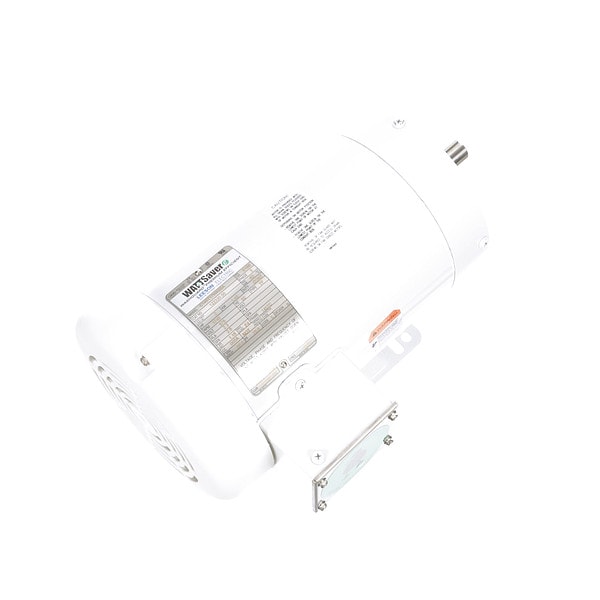

Leeson WashdownMotor, 2hp, 1745RPM, 145TC, 575VAC 122330.00 - main

WashdownMotor, 2hp, 1745RPM, 145TC, 575VAC

  • Mfr # 122330.00

  • Zoro # G300722944

product price: $1,325.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
575V AC
Frame
145TC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
122330.00
Zoro #
G300722944
UPC #
691720052884
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
1 yr
Shaft Dia.
7/8 in
Shaft Length
2 in
Bolt Circle Dia.
5 7/8 in
Overall Length
14 7/16 in
Length Less Shaft
11 13/16 in
Body Dia.
7.3 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
1,701-1,800
Voltage
575V AC
Frame
145TC
Motor Frame Material
Steel
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Shaft Design
Keyed
No. of Speeds
1
Hz
60 Hz
Motor Service Factor
1.2
Motor Mounting Type
C-Face, Rigid Base
Removable Base
No
Motor Application
General Purpose
Motor Mounting Position
Horizontal
Nominal Efficiency
86.5 %
Full Load Amps
2.3 A
Max. Ambient Temp.
40 Degrees C
Nameplate RPM
1,745 RPM
Voltage Compatibility
575V AC
Motor Bearings
Ball
NEMA Design
B
Motor Shaft Rotation
CW/CCW
Conduit Box Location
Exterior
Finish
Epoxy-Coated
Duty Cycle
Continuous
Standards
CE, CSA Certified, UL Recognized, USDA Approved
Shaft Material
Stainless Steel
Drain Plugs
(1) in Conduit Box
Bearing Protection
Shaft Shields
Ins. Class
F
Usable @ 208V
Not Usable at 208V
Weight
45 lb
Usable @ 200V
Not Usable at 200V
Endshield Material
Aluminum
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 575V AC, Full Load Amps 2.3 A, 145TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
