  11. WashdownMotor, 2hp, 1745RPM, 56C, 230/460VAC

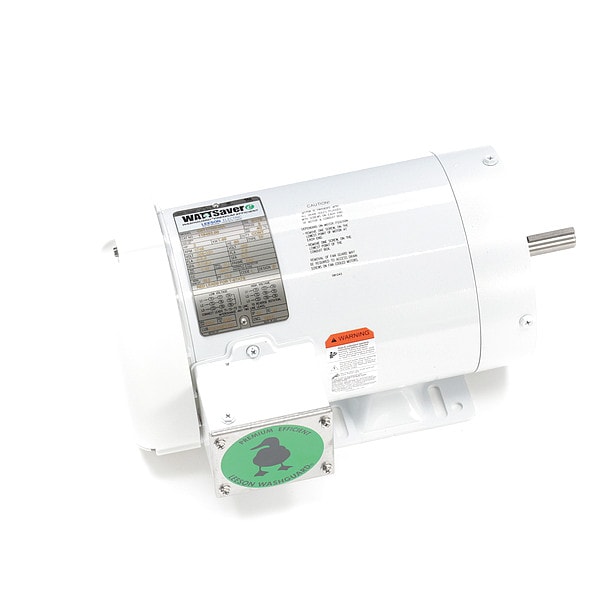

Leeson WashdownMotor, 2hp, 1745RPM, 56C, 230/460VAC 119483.00 - main

WashdownMotor, 2hp, 1745RPM, 56C, 230/460VAC

  • Mfr # 119483.00

  • Zoro # G200722945

product price: $975.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
119483.00
Zoro #
G200722945
UPC #
691720102893
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 7/8 in
Shaft Dia.
5/8 in
Shaft Length
2 1/16 in
Length Less Shaft
11 15/16 in
Body Dia.
7.3 in
Overall Length
14 3/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
Motor Frame Material
Steel
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan Cooled
Nameplate RPM
1,745 RPM
Finish
Epoxy-Coated
Usable @ 208V
Usable at 208V
Drain Plugs
(1) in Conduit Box
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Removable Base
No
Full Load Amps
5.8/2.9 A
Shaft Material
Stainless Steel
NEMA Design
B
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Motor Mounting Position
Horizontal
Nominal Efficiency
86.5 %
Usable @ 200V
Not Usable at 200V
Ins. Class
F
Duty Cycle
Continuous
Motor Bearings
Ball
Motor Application
General Purpose
Hz
60 Hz
Motor Service Factor
1.2
Motor Shaft Design
Keyed
Bearing Protection
Shaft Shields
Conduit Box Location
Exterior
Motor Shaft Rotation
CW/CCW
Weight
38 lb
Motor Mounting Type
C-Face
Standards
CE, CSA Certified, UL Recognized, USDA
Endshield Material
Aluminum
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
