  11. WashdownMotor, 30hp, 3550RPM, 230/460VAC

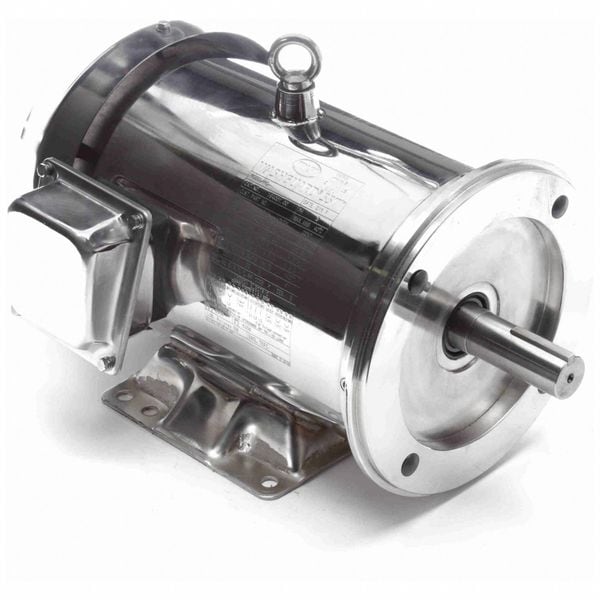

Leeson WashdownMotor, 30hp, 3550RPM, 230/460VAC 194014.00 - main

WashdownMotor, 30hp, 3550RPM, 230/460VAC

  • Mfr # 194014.00

  • Zoro # G006626652

product price: $12,029.99
/ea
Item requires special delivery charges. A $120.00 per item surcharge will be applied.

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
286TC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
194014.00
Zoro #
G006626652
UPC #
691720107898
Country of Origin
China

Dimensions

Shaft Dia.
1 7/8 in
Body Dia.
13.98 in
Shaft Length
4 3/8 in
Overall Length
27 15/16 in
Bolt Circle Dia.
9 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
30 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
286TC
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
NEMA Design
B
Hz
60/50 Hz
Inverter Rating
2:1
Max. Ambient Temp.
40 Degrees C
Motor Mounting Type
C-Face, Rigid Base
Motor Shaft Rotation
CW/CCW
Usable @ 208V
Usable at 208V
Motor Application
General Purpose
Duty Cycle
Continuous
Nominal Efficiency
91.7 %
Weight
425 lb
Ins. Class
F
Full Load Amps
76.0-68.0/34.0 A
Inverter Rated
Inverter Rated
Voltage Compatibility
190/380, 208-230/460
Nameplate RPM
3,550 RPM
No. of Speeds
1
Motor Shaft Design
Keyed
Motor Mounting Position
Horizontal
Standards
CE Certified, CSA Certified, UL Listed
Motor Service Factor
1.15
Motor Bearings
Ball
Finish
Unfinished
Usable @ 200V
Usable at 200V
Endshield Material
Stainless Steel
Conduit Box Position
F1/F2

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 30 hp HP, Nameplate RPM 3,550 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 76.0-68.0/34.0 A, 286TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
