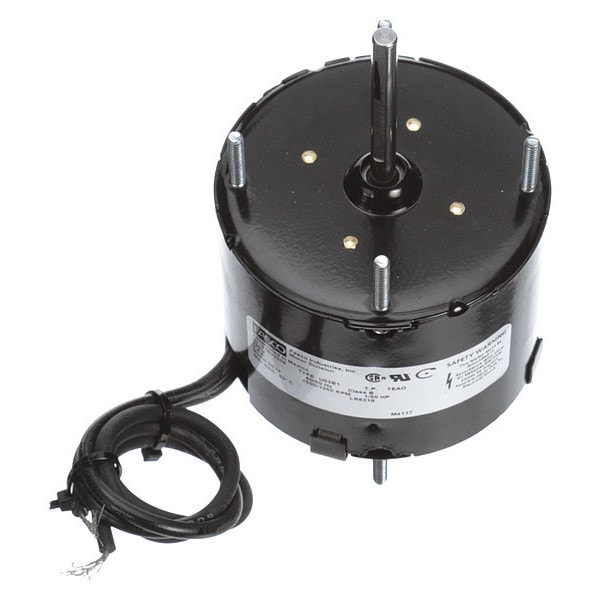

HVAC 3.3 In Motor, 1/50 HP, 230V, CW

  • Mfr # D624

  • Zoro # G7525883

product price:
$
98.79
/ea

Key Features

Voltage
230V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/50
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D624
Zoro #
G7525883
UPC #
818508021065
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/4 in
Body Dia.
3 5/16 in
Shaft Length
2 1/4 in
Length Less Shaft
3 1/16 in
Lead Length
12 in
Bolt Circle Dia.
2 7/8 in
Stud Size
#8-32
Overall Length
5 1/8 in
Body Diameter
3.3 in
Mounting Stud Thread Size
#8-32
Bolt Circle Diameter
2 7/8 in
Shaft Diameter
1/4 in
Frame Size
3.3
Wire Rope Length
5 1/8 in
Length
5 1/8 in

Details

Voltage
230V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/50
RPM Range
1,501-1,600
Motor Design
Shaded Pole
Motor Service Factor
1
Mounting Stud Location
4/Both Ends
Max. Ambient Temp.
40 Degrees C
Motor Application
HVAC/R
Phase
Single
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Full Load Amps
0.4 A
Ins. Class
B
Application
Fan/Blower
Mounting Pattern
2-7/8 x 2-7/8
Motor Thermal Protection
Auto
Motor Bearings
Sleeve
Duty
Continuous
Standards
CSA Certified, UL Recognized
Number of Shafts
1
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Frame
3.3
Item
Fan and Blower Motor
Motor Shaft Design
Flat
Motor Mounting Type
Ring/Stud
Hz
60 Hz
No. of Speeds
1
Motor Shaft Rotation
CWSE
Motor Sub Application
Direct Drive Fan/Blower
Capacitor Required
Capacitor Not Required
Mounting Holes
(8) #8-32
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Mounting Stud Pattern
2 7/8 in x 2 7/8 in
Motor Mounting Position
All Angle
Weight
3 lb
RPM @ 50Hz
1,250 RPM
Mounting
Stud
Shaft Design
Flat
Sub Application
General Purpose
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1
Product Type
Fan and Blower Motor
Frame Material
Steel
Drive Type
Direct Drive
Frequency
60 Hz
Full Load Current @ 60 Hz
0.4 A
Nameplate RPM @ 50 Hz
1,250 RPM
Motor Enclosure Type
Totally Enclosed Air-Over
Bearing Type
Sleeve
Ambient Temperature - Maximum
40 Degrees C
Wattage
10 W

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/100 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 230V AC, 0.4 A Full Load Amps, 3.3 Frame, Output Watts 10 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel
