  11. WashdownMotor, 3/4hp, 115/208-230VAC
No Product Image Available

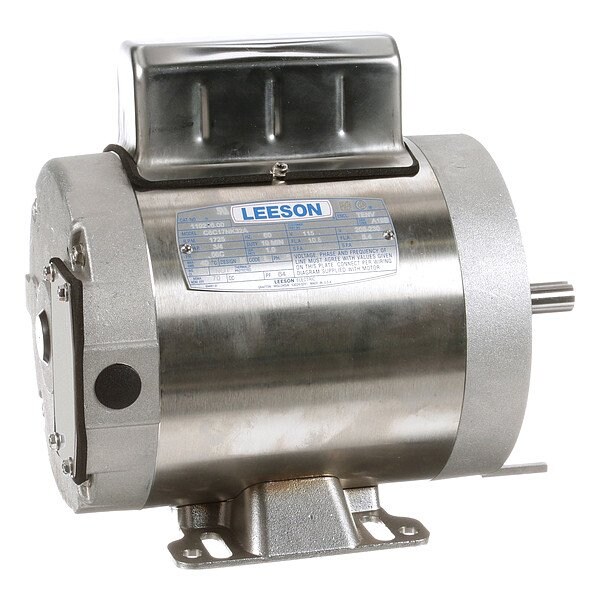

WashdownMotor, 3/4hp, 115/208-230VAC

  • Mfr # 119216.00

  • Zoro # G811930470

product price: $778.99
/ea
Free Shipping & Returns

Key Features

HP
3/4 hp
Nameplate RPM
1,725 RPM
Shaft Dia.
5/8 in
Voltage
115/208-230V AC
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
119216.00
Zoro #
G811930470
UPC #
691720108239
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Length Less Shaft
8 1/2 in
Overall Length
10 3/8 in
Bolt Circle Dia.
5 7/8 in

Details

HP
3/4 hp
Nameplate RPM
1,725 RPM
Item
Washdown Motor
Voltage
115/208-230V AC
Frame
56C
Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Voltage Compatibility
115/208-230 V
Motor Shaft Design
Keyed
Nominal Efficiency
70 %
Phase
Single
Full Load Amps
10.8/5.6-5.4 A
Motor Mounting Type
C-Face
Motor Application
General Purpose
Motor Mounting Position
Horizontal
Ins. Class
B
Motor Frame Material
Stainless Steel
Motor Bearings
Ball
Usable @ 200V
Not Usable at 200V
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CW/CCW
Duty Cycle
Intermittent
No. of Speeds
1
Weight
26 lb
RPM Range
1725
Standards
CSA Certified, UL Listed
Finish
Unfinished
Hz
60 Hz
Motor Thermal Protection
None
Motor Service Factor
1
NEMA Design
N
Usable @ 208V
Usable at 208V
Endshield Material
Aluminum

Description

Washdown Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 10.8/5.6-5.4 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, NEMA Design N, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
