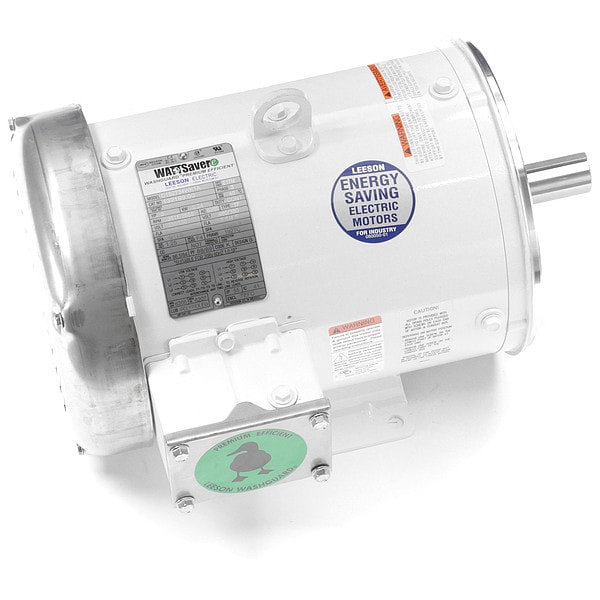

WashdownMotor, 3hp, 3515RPMTC, 230/460VAC
Mfr # 132199.00
Zoro # G906626653
product price: $1,449.00
/ea
Free Shipping & Returns
Key Features
Motor Design
Three-Phase
Phase
Three
HP
3 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
132199.00
Zoro #
G906626653
UPC #
691720000328
Country of Origin
Mexico
Dimensions
Overall Length
15 in
Shaft Dia.
1 1/8 in
Shaft Length
2 5/8 in
Body Dia.
8.5 in
Bolt Circle Dia.
7 1/4 in
Description
Washdown Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 3,515 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 8.2-7.6/3.8 A, 182TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
