Shop LEGRAND

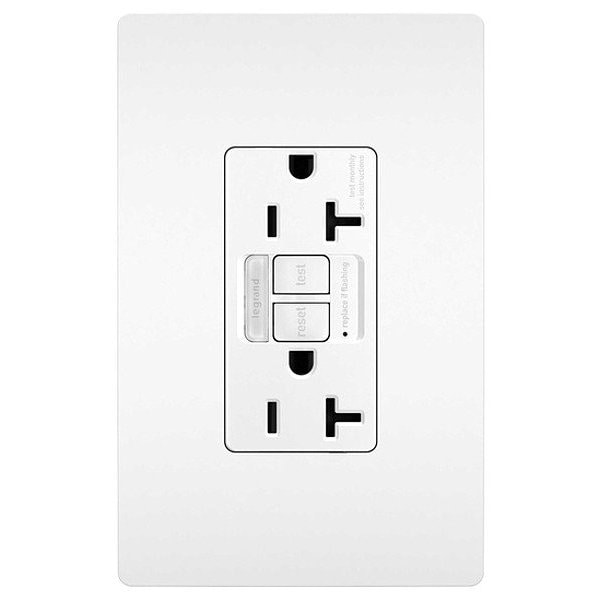

GFCI-USB, 20 A, 125V AC, White, Plastic

  • Mfr # 2097NTLTRW

  • Zoro # G522785338

product price:
$
39.35
/ea

Key Features

Number of Poles
2
UL 94 Flammability Rating
V-2
NEMA Receptacle Configuration
5-20R
Number of Wall Plates Included
0
Series
Radiant(R)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2097NTLTRW
Zoro #
G522785338
UPC #
785007047790
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Mount Hole Center-to-Center Width
0.9 in
Face Plate Width
1.7 in
Maximum Wire Size
10 AWG
Face Plate Height
2.7 in
Overall Depth
1 in

Details

Number of Poles
2
UL 94 Flammability Rating
V-2
NEMA Receptacle Configuration
5-20R
Number of Wall Plates Included
0
Series
Radiant(R)
Current Rating
20 A
Number of Gangs
1
Polarized
No
Cover Type
No Cover
Number of Outlets
2
Shrouded
No
Market
Commercial
AFCI
No
Item
GFCI-USB
Grade
General Use
NEMA Enclosure Rating
5
Receptacle Type
Duplex
Maximum Operating Temperature
66 Degrees C
Surge Protection
No
Wire Connection Type
Screw Terminals
Hub Type
Feed Through
IP Rating
Not Rated
Minimum Operating Temperature
-35 Degrees C
GFCI
Yes
Grounding
Grounded
Voltage Rating
125V AC
Features
Complete the Look with a Sleek, Screwless Radiant(R) Wall Plate, and Coordinate with Other Designer Switches and Outlets Available from the Radiant(R) Collection, Features Durable, High-Impact Resistant Thermoplastic Construction, Hidden Sensor Controls Night Light Based on Ambient Light, Automatically Turning On When it is Dark, More Color Options Available to Fit Any Style, Protects Against Shock Caused by Ground-Fault Occurrences, Protects Children with a Patented Tamper-Resistant Shutter System that Prevents Improper Insertion of Foreign Objects, Complete with "Invisi-Shutters" for an Invisible Effect, Replaces Any Standard Outlet with Ease, in as Little as 10 Minutes, Unlike Breaker Alternatives, GFCI Outlets Make it Easier to Fix Trips with a Convenient Reset Button on the Outlet
Housing Color
White
Housing Material
Plastic
Contact Material
Brass
For Location
Indoor
Phase
Single
Number of Wires
3
Mount Type
Flush
Flange Type
Non-Flanged
Wiring Method
Back/Side
Standards
cULus, UL Listed
Includes
Wall Plate
Resistance Properties
Tamper Resistant

Description

GFCI-USB, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Plastic, Mount Type Flush, NEMA Enclosure Rating 5, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized No, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards cULus, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
