Shop LEGRAND

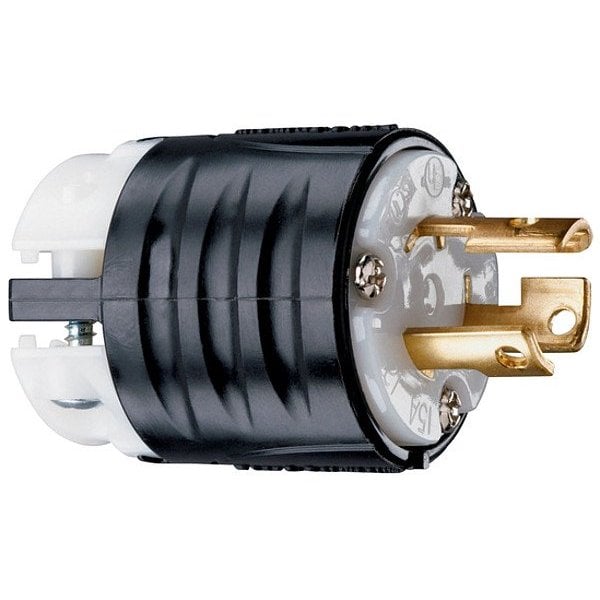

Locking Plug, 15 A, Black, Nylon

  • Mfr # PSL515P

  • Zoro # G222784471

product price:
$
25.85
/ea

Key Features

Phase
Single
Standards
UL 498
Minimum Operating Temperature
-40 Degrees C
Number of Blades
3
Wire Rope Length
1.752 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PSL515P
Zoro #
G222784471
UPC #
785007236545
Country of Origin
Mexico

Dimensions

Wire Rope Length
1.752 in
For Minimum Cable Diameter
0.23 in
For Maximum Cable Diameter
0.72 in
Overall Length
1.752 in

Details

Phase
Single
Standards
UL 498
Minimum Operating Temperature
-40 Degrees C
Number of Blades
3
Maximum Operating Temperature
75 Degrees C
Current Rating
15 A
For Location
Indoor
Grade
General Use
Midget Locking
No
Wire Connection Type
Screw Terminals
Resistance Properties
Corrosion Resistant, Impact Resistant
NEMA Plug Configuration
L5-15P
Housing Material
Nylon
UL 94 Flammability Rating
V-2
Number of Poles
2
Features
Double Dovetail Design Provides Superior Protection Against Cord Pull-Out Forces, Impact- and Corrosion-Resistant Durable Nylon 6/6 Shell Material, Industrial-Strength, Brass Alloy Plug Blades and Connector Contacts Resist Heat Rise, Provide Excellent Conductivity, Integral Flexible Rubber Cord Grommet Conforms to and Seals Around SO Cord to Provide Protection from Oils, Water, or Chips Entering Wiring Chamber, New-Design External Cord Grips Provide Visible Assurance of Safe and Proper Cord Retention, Quick-Thread Assembly Screws and Cord-Grip Screws Come Backed-Out, Ready-to-Wire, Raised Ribs Provide Non-Slip Gripping Profile for Turning to Lock and Unlock, Rounded Back Contour Reduces Snags and Hang-Ups on the Job Site, Scallop Shell Design Provides Non-Slip Gripping Surface for Insertion and Withdrawal, Visible Stamped NEMA Configuration and Device Rating
Shrouded
No
Item
Locking Plug
Housing Color
Black
Voltage Rating
125V AC
Power and Ground Indicating Light
No
Series
TURNLOK(R)
Market
Industrial

Description

Locking Plug, Current Rating 15 A, Housing Color Black, Housing Material Nylon, NEMA Plug Configuration L5-15P, Number of Blades 3, Number of Poles 2, Phase Single, Resistance Properties Corrosion Resistant, Impact Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.72 in, For Minimum Cable Diameter 0.23 in, Grade General Use, Horsepower Rating Not Applicable, IP Rating Not Applicable, Market Industrial, Midget Locking No
