Shop LEGRAND

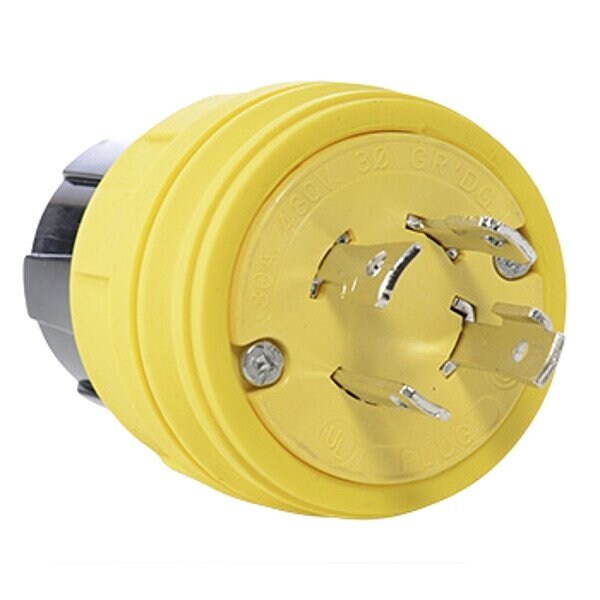

LockingPlug, 30A, Yellow, Thermoplastic

  • Mfr # 28W76

  • Zoro # G822784444

product price:
$
94.99
/ea

Key Features

Power and Ground Indicating Light
No
Grounding
Grounded
NEMA Enclosure Rating
4, 4X, 6, 6P
Shrouded
No
Housing Material
Thermoplastic
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
28W76
Zoro #
G822784444
UPC #
785007033519
Country of Origin
United States

Dimensions

Wire Rope Length
3.1 in
For Minimum Cable Diameter
0.3 in
For Maximum Cable Diameter
0.625 in
Overall Length
3.1 in

Details

Power and Ground Indicating Light
No
Grounding
Grounded
NEMA Enclosure Rating
4, 4X, 6, 6P
Shrouded
No
Housing Material
Thermoplastic
Wire Connection Type
Screw Terminals
Resistance Properties
Corrosion Resistant
IP Rating
IP67
Series
TURNLOK(R)
Voltage Rating
480V AC
Current Rating
30 A
Market
Industrial
Connection Orientation
Straight
Housing Color
Yellow
Standards
CSA Listed, UL Listed
Features
Color-Coded Sealing Bushings Provided for Large Range of Cord Diameters, Devices Resist High-Pressure Hose Down of 1,500 PSI, Large Ribs on Body for a Superior Grip When Mating, Multipoint Sealing System Provides Environmental Protection of NEMA 4, 4X, 6, 6P, and IP67 Rated, Nickel-Plated Blades and Contacts for Long-Lasting, Superior Corrosion Resistance, Thermoplastic Elastomer (TPV) Construction Stands upto Impacts, Oils, Chemicals, Heat, and Weather
NEMA Plug Configuration
L16-30P
For Location
Indoor, Outdoor
Phase
Three
Number of Poles
3
Number of Blades
4
Midget Locking
No
Item
Locking Plug

Description

Locking Plug, Connection Orientation Straight, Current Rating 30 A, Housing Color Yellow, Housing Material Thermoplastic, NEMA Plug Configuration L16-30P, Number of Blades 4, Number of Poles 3, Phase Three, Resistance Properties Corrosion Resistant, Voltage Rating 480V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.625 in, For Minimum Cable Diameter 0.3 in, Grounding Grounded, Horsepower Rating Not Applicable, IP Rating IP67, Market Industrial
