Shop LEGRAND

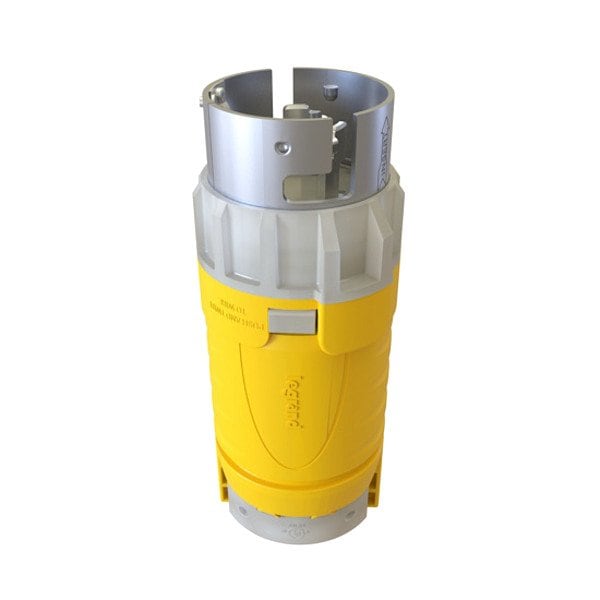

Locking Plug, 50 A, Yellow, Nylon

  • Mfr # CR6365C

  • Zoro # G422784349

product price:
$
170.99
/ea
Free Shipping & Returns

Key Features

Midget Locking
No
Wire Connection Type
Screw Terminals
Market
Commercial, Industrial
UL 94 Flammability Rating
V-2
Wire Rope Length
6.38 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CR6365C
Zoro #
G422784349
UPC #
785007442649
Country of Origin
Mexico

Dimensions

Wire Rope Length
6.38 in
For Minimum Cable Diameter
0.68 in
For Maximum Cable Diameter
1.125 in
Overall Length
6.38 in

Details

Midget Locking
No
Voltage Rating
250V AC
Wire Connection Type
Screw Terminals
Market
Commercial, Industrial
UL 94 Flammability Rating
V-2
Resistance Properties
Corrosion Resistant, Impact Resistant
Minimum Operating Temperature
-40 Degrees C
NEMA Plug Configuration
Non-NEMA
Phase
Single
Features
All Screws are on the Same Plane for Accurate, Streamlined Installation, Saving Time on the Job, An Adjustable Cord Clamp is Located Outside the Back Body for Greater Flexibility to Accommodate a Wider Range of Cord Sizes, Clamp Screws are on the Same Plane for Faster Installation, Impact- and Corrosion-Resistant Durable Nylon 66 Shell Material, Industrial-Strength, Brass Alloy Plug Blades and Connector Contacts Resist Heat Rise and Provide Excellent Conductivity, Integral Flexible Rubber Cord Grommet Conforms to and Seals Around SO Cord to Provide Protection from Oils, Water, or Chips Entering Wiring Chamber, Longer Screws are Included to Adjust for Larger Cables, Newly Designed External Cord Grips Provide Visible Assurance of Safe and Proper Cord Retention, No Time-Consuming Threading, Same-Plane Hex Head Terminations for Faster, Safer Installations with More Torque and Reduced Risk of Screwdriver Slips, Securing Your Installations is Easier Than Ever, The Back Body Easily Slides Onto the Device and Locks in Place with a Simple Quarter Twist, Visible Molded NEMA Configuration and Device Rating
Housing Material
Nylon
Power and Ground Indicating Light
No
Shrouded
Yes
Item
Locking Plug
Number of Poles
3
Current Rating
50 A
Series
TURNLOK(R)
Housing Color
Yellow
Maximum Operating Temperature
75 Degrees C
Standards
cULus File No.E146159, RoHS, UL 498
Number of Blades
4

Description

Locking Plug, Current Rating 50 A, Housing Color Yellow, Housing Material Nylon, NEMA Plug Configuration Non-NEMA, Number of Blades 4, Number of Poles 3, Phase Single, Resistance Properties Corrosion Resistant, Impact Resistant, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.125 in, For Minimum Cable Diameter 0.68 in, Horsepower Rating Not Applicable, IP Rating Not Applicable, Market Commercial, Industrial, Midget Locking No
