Shop LEGRAND

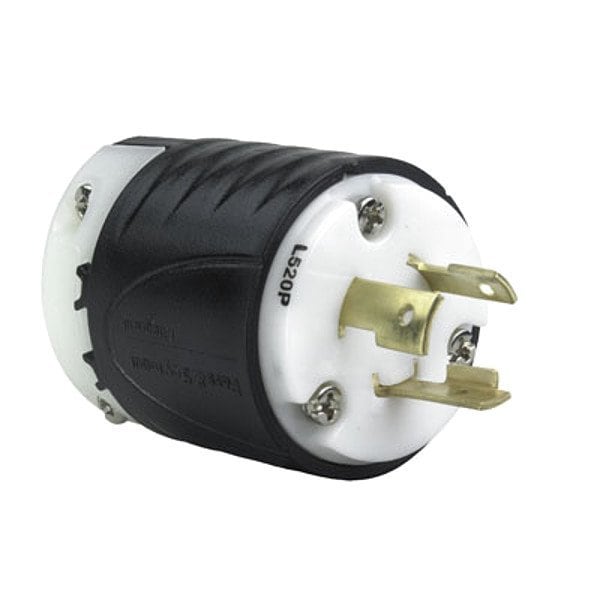

Locking Plug, 20 A, Black, Nylon

  • Mfr # L520P

  • Zoro # G622784408

product price:
$
32.39
/ea

Key Features

Features
Double Dovetail Design Provides Superior Protection Against Cord Pull-Out Forces, Impact- and Corrosion-Resistant Durable Nylon 6 Shell Material, Industrial-Strength, Brass Alloy Plug Blades and Connector Contacts Resist Heat Rise, Provide Excellent Conductivity, Integral Flexible Rubber Cord Grommet Conforms to and Seals Around SO Cord to Provide Protection from Oils, Water, or Chips Entering Wiring Chamber, New-Design External Cord Grips Provide Visible Assurance of Safe and Proper Cord Retention, Quick-Thread Assembly Screws and Cord-Grip Screws Come Backed-Out, Ready-to-Wire, Raised Ribs Provide Non-Slip Gripping Profile for Turning to Lock and Unlock, Rounded Back Contour Reduces Snags and Hang-Ups on the Job Site, Scallop Shell Design Provides Non-Slip Gripping Surface for Insertion and Withdrawal, Visible Stamped NEMA Configuration and Device Rating
Housing Color
Black
For Minimum Cable Diameter
0.225 in
Number of Blades
3
Market
Industrial
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L520P
Zoro #
G622784408
UPC #
785007252040
Country of Origin
Mexico

Dimensions

For Minimum Cable Diameter
0.225 in
For Maximum Cable Diameter
1.15 in
Wire Rope Length
2.57 in
Overall Length
2.57 in

Details

Features
Double Dovetail Design Provides Superior Protection Against Cord Pull-Out Forces, Impact- and Corrosion-Resistant Durable Nylon 6 Shell Material, Industrial-Strength, Brass Alloy Plug Blades and Connector Contacts Resist Heat Rise, Provide Excellent Conductivity, Integral Flexible Rubber Cord Grommet Conforms to and Seals Around SO Cord to Provide Protection from Oils, Water, or Chips Entering Wiring Chamber, New-Design External Cord Grips Provide Visible Assurance of Safe and Proper Cord Retention, Quick-Thread Assembly Screws and Cord-Grip Screws Come Backed-Out, Ready-to-Wire, Raised Ribs Provide Non-Slip Gripping Profile for Turning to Lock and Unlock, Rounded Back Contour Reduces Snags and Hang-Ups on the Job Site, Scallop Shell Design Provides Non-Slip Gripping Surface for Insertion and Withdrawal, Visible Stamped NEMA Configuration and Device Rating
Housing Color
Black
Voltage Rating
125V AC
Number of Blades
3
Market
Industrial
Minimum Operating Temperature
-40 Degrees C
UL 94 Flammability Rating
V-2
Maximum Operating Temperature
75 Degrees C
Shrouded
No
Midget Locking
No
Housing Material
Nylon
Grounding
Grounded
Grade
General Use
Series
TURNLOK(R)
NEMA Plug Configuration
L5-20P
Current Rating
20 A
Standards
UL 498
Resistance Properties
Corrosion Resistant, Impact Resistant
Number of Poles
2
Wire Connection Type
Screw Terminals
Power and Ground Indicating Light
No
For Location
Indoor
Phase
Single
Item
Locking Plug

Description

Locking Plug, Current Rating 20 A, Housing Color Black, Housing Material Nylon, NEMA Plug Configuration L5-20P, Number of Blades 3, Number of Poles 2, Phase Single, Resistance Properties Corrosion Resistant, Impact Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.15 in, For Minimum Cable Diameter 0.225 in, Grade General Use, Grounding Grounded, Horsepower Rating Not Applicable, IP Rating Not Applicable, Market Industrial
