Shop LEGRAND

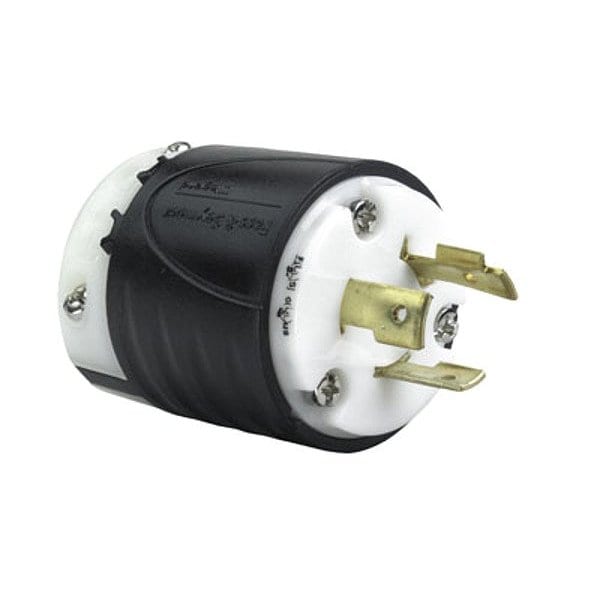

Locking Plug, 20 A, Black, Nylon

  • Mfr # L720P

  • Zoro # G422784592

product price:
$
32.39
/ea

Key Features

Number of Poles
2
Grounding
Grounded
Shrouded
No
Resistance Properties
Corrosion Resistant, Impact Resistant
Wire Connection Type
Screw Terminals
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L720P
Zoro #
G422784592
UPC #
785007272048
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.225 in
Wire Rope Length
2.57 in
Overall Length
2.57 in

Details

Voltage Rating
277V AC
Number of Poles
2
Grounding
Grounded
Shrouded
No
Item
Locking Plug
Resistance Properties
Corrosion Resistant, Impact Resistant
Wire Connection Type
Screw Terminals
Phase
Single
Housing Color
Black
Housing Material
Nylon
For Location
Indoor
NEMA Plug Configuration
L7-20P
Number of Blades
3
Power and Ground Indicating Light
No
Current Rating
20 A
Grade
General Use
UL 94 Flammability Rating
V-2
Market
Industrial
Standards
UL 498
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
75 Degrees C
Midget Locking
No
Series
TURNLOK(R)
Features
Double Dovetail Design Provides Superior Protection Against Cord Pull-Out Forces, Impact- and Corrosion-Resistant Durable Nylon 6 Shell Material, Industrial-Strength, Brass Alloy Plug Blades and Connector Contacts Resist Heat Rise, Provide Excellent Conductivity, Integral Flexible Rubber Cord Grommet Conforms to and Seals Around SO Cord to Provide Protection from Oils, Water, or Chips Entering Wiring Chamber, New-Design External Cord Grips Provide Visible Assurance of Safe and Proper Cord Retention, Quick-Thread Assembly Screws and Cord-Grip Screws Come Backed-Out, Ready-to-Wire, Raised Ribs Provide Non-Slip Gripping Profile for Turning to Lock and Unlock, Rounded Back Contour Reduces Snags and Hang-Ups on the Job Site, Scallop Shell Design Provides Non-Slip Gripping Surface for Insertion and Withdrawal, Visible Stamped NEMA Configuration and Device Rating

Description

Locking Plug, Current Rating 20 A, Housing Color Black, Housing Material Nylon, NEMA Plug Configuration L7-20P, Number of Blades 3, Number of Poles 2, Phase Single, Resistance Properties Corrosion Resistant, Impact Resistant, Voltage Rating 277V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.15 in, For Minimum Cable Diameter 0.225 in, Grade General Use, Grounding Grounded, Horsepower Rating Not Applicable, IP Rating Not Applicable, Market Industrial
