Shop LEGRAND

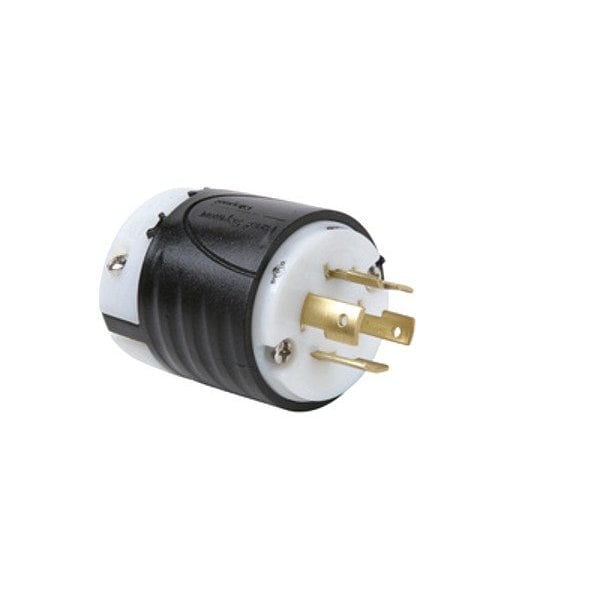

Locking Plug, 20 A, Black, Nylon

  • Mfr # L1620P

  • Zoro # G722785268

product price:
$
50.35
/ea

Key Features

Grade
General Use
Wire Rope Length
2.57 in
Power and Ground Indicating Light
No
Wire Connection Type
Screw Terminals
Number of Blades
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L1620P
Zoro #
G722785268
UPC #
785007162042
Country of Origin
Mexico

Dimensions

Wire Rope Length
2.57 in
For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.225 in
Overall Length
2.57 in

Details

Grade
General Use
Item
Locking Plug
Power and Ground Indicating Light
No
Wire Connection Type
Screw Terminals
Voltage Rating
480V AC
Number of Blades
3
NEMA Plug Configuration
L16-20P
Series
TURNLOK(R)
Phase
Three
Maximum Operating Temperature
75 Degrees C
UL 94 Flammability Rating
V-2
Current Rating
20 A
Grounding
Grounded
Minimum Operating Temperature
-40 Degrees C
Midget Locking
No
Number of Poles
2
Housing Color
Black
Market
Industrial
For Location
Indoor
Features
Double Dovetail Design Provides Superior Protection Against Cord Pull-Out Forces, Impact- and Corrosion-Resistant Durable Nylon 6 Shell Material, Industrial-Strength, Brass Alloy Plug Blades and Connector Contacts Resist Heat Rise, Provide Excellent Conductivity, Integral Flexible Rubber Cord Grommet Conforms to and Seals Around SO Cord to Provide Protection from Oils, Water, or Chips Entering Wiring Chamber, New-Design External Cord Grips Provide Visible Assurance of Safe and Proper Cord Retention, Quick-Thread Assembly Screws and Cord-Grip Screws Come Backed-Out, Ready-to-Wire, Raised Ribs Provide Non-Slip Gripping Profile for Turning to Lock and Unlock, Rounded Back Contour Reduces Snags and Hang-Ups on the Job Site, Scallop Shell Design Provides Non-Slip Gripping Surface for Insertion and Withdrawal, Visible Stamped NEMA Configuration and Device Rating
Resistance Properties
Corrosion Resistant, Impact Resistant
Housing Material
Nylon
Standards
UL 498
Shrouded
No

Description

Locking Plug, Current Rating 20 A, Housing Color Black, Housing Material Nylon, NEMA Plug Configuration L16-20P, Number of Blades 3, Number of Poles 2, Phase Three, Resistance Properties Corrosion Resistant, Impact Resistant, Voltage Rating 480V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.15 in, For Minimum Cable Diameter 0.225 in, Grade General Use, Grounding Grounded, Horsepower Rating Not Applicable, IP Rating Not Applicable, Market Industrial
