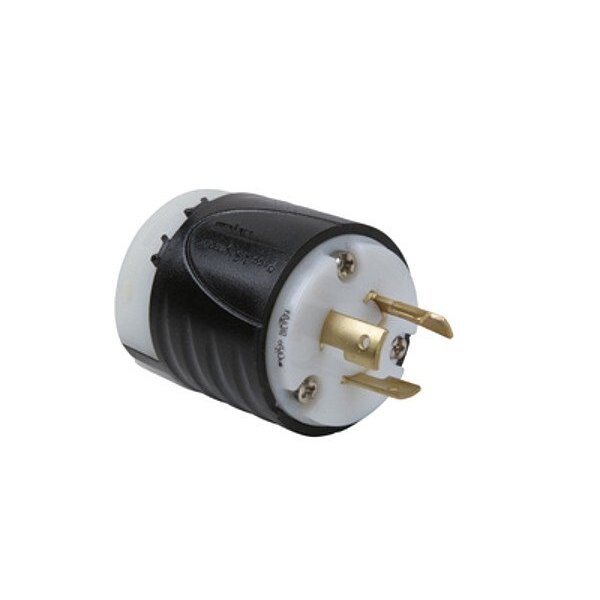

Locking Plug, 20 A, Black, Nylon

  • Mfr # L620P

  • Zoro # G322783817

product price:
$
32.39
/ea

Key Features

Overall Length
2.57 in
Number of Blades
3
Market
Industrial
Standards
UL 498
Housing Material
Nylon
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L620P
Zoro #
G322783817
UPC #
785007262049
Country of Origin
Mexico

Dimensions

Overall Length
2.57 in
For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.225 in
Wire Rope Length
2.57 in

Details

Voltage Rating
250V AC
Number of Blades
3
Market
Industrial
NEMA Plug Configuration
L6-20P
Standards
UL 498
Housing Material
Nylon
Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-40 Degrees C
Power and Ground Indicating Light
No
UL 94 Flammability Rating
V-2
Number of Poles
2
For Location
Indoor
Grade
General Use
Grounding
Grounded
Series
TURNLOK(R)
Housing Color
Black
Shrouded
No
Features
Double Dovetail Design Provides Superior Protection Against Cord Pull-Out Forces, Impact- and Corrosion-Resistant Durable Nylon 6 Shell Material, Industrial-Strength, Brass Alloy Plug Blades and Connector Contacts Resist Heat Rise, Provide Excellent Conductivity, Integral Flexible Rubber Cord Grommet Conforms to and Seals Around SO Cord to Provide Protection from Oils, Water, or Chips Entering Wiring Chamber, New-Design External Cord Grips Provide Visible Assurance of Safe and Proper Cord Retention, Quick-Thread Assembly Screws and Cord-Grip Screws Come Backed-Out, Ready-to-Wire, Raised Ribs Provide Non-Slip Gripping Profile for Turning to Lock and Unlock, Rounded Back Contour Reduces Snags and Hang-Ups on the Job Site, Scallop Shell Design Provides Non-Slip Gripping Surface for Insertion and Withdrawal, Visible Stamped NEMA Configuration and Device Rating
Current Rating
20 A
Item
Locking Plug
Resistance Properties
Corrosion Resistant, Impact Resistant
Phase
Single
Maximum Operating Temperature
75 Degrees C
Midget Locking
No

Description

Locking Plug, Current Rating 20 A, Housing Color Black, Housing Material Nylon, NEMA Plug Configuration L6-20P, Number of Blades 3, Number of Poles 2, Phase Single, Resistance Properties Corrosion Resistant, Impact Resistant, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.15 in, For Minimum Cable Diameter 0.225 in, Grade General Use, Grounding Grounded, Horsepower Rating Not Applicable, IP Rating Not Applicable, Market Industrial
