  11. Watertight Locking Connector, Non-NEMA, 20 A, 125/250V AC, Three Phase, 3 Pole, Screw Terminals

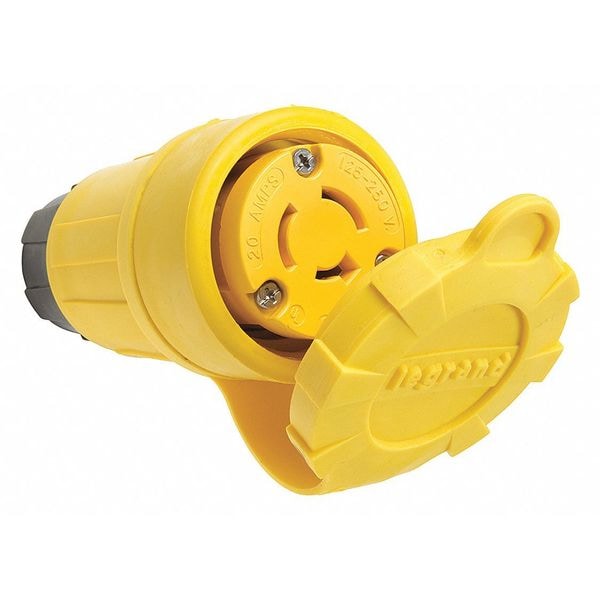

Legrand Watertight Locking Connector, Non-NEMA, 20 A, 125/250V AC, Three Phase, 3 Pole, Screw Terminals 27W08 - main

Watertight Locking Connector, Non-NEMA, 20 A, 125/250V AC, Three Phase, 3 Pole, Screw Terminals

  • Mfr # 27W08

  • Zoro # G7766319

product price: $66.99
/ea

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
27W08
Zoro #
G7766319
UPC #
785007033533
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.875 in
For Minimum Cable Diameter
0.375 in
Cord Size
0.475 in to 0.720 in
Outside Diameter
0.625 in
Maximum Wire Size
10 AWG
Overall Length
4.03 in
Minimum Wire Size
14 AWG

Details

Item
Watertight Locking Connector
NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Three
Number of Poles
3
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Yellow
Cap Type
Press-On Cap
IP Rating
IP65, IP66, IP67
Standards
CSA Certified, UL Listed
Resistance Properties
Chemical Resistant, Corrosion Resistant, Heat Resistant, Moisture Resistant, Oil and Grease Resistant, Weather Resistant
Material
Thermoplastic Elastomer
Grade
Industrial
Special Features
Corrosion resistant
Housing Material
Thermoplastic Elastomer
NEMA Enclosure Rating
12, 4, 4X, 6, 6P
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
140 Degrees F
Contact Material
Nickel-Plated Brass
Midget Locking
No
Market
Industrial
Power Indicating Light
No
UL 94 Flammability Rating
V-0
NEMA Rating
4, 4X, 6, 6P
Antimicrobial
No
Power Indicator
No

Description

Watertight Locking Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Yellow, Housing Material Thermoplastic Elastomer, IP Rating IP65, IP66, IP67, NEMA Receptacle Configuration Non-NEMA, Number of Poles 3, Number of Wires 3, Phase Single, Resistance Properties Chemical Resistant, Corrosion Resistant, Heat Resistant, Moisture Resistant, Oil and Grease Resistant, Weather Resistant, Shrouded No, Voltage Rating 125V AC, Wiring Style Standard
