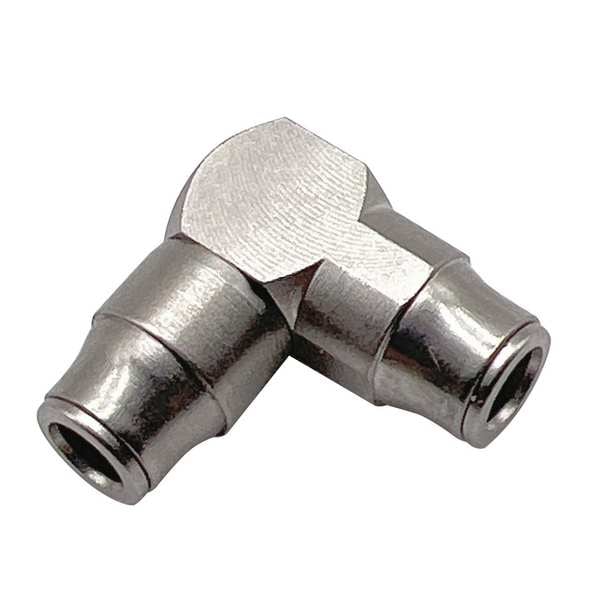

Metric Push-to-Connect Fitting, Brass, Silver
- Mfr # 3202 03 00
- Zoro # G504995106
product price:Â
$
19.49
/ea
Key Features
Specific Fitting Shape
90 Degrees Elbow
Application
Air
System of Measurement
Metric
Standards
2011/65/EC, 2002/95/EC (RoHS), DI: 94/9/EC (ATEX ), DI: 97/23/EC (PED), ISO 14743, 1907/2006 REACH
Color
Silver
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 3202 03 00
- Zoro #
- G504995106
- UPC #
- -
- Country of Origin
- France
- Item
- Push-Fit Elbow Fitting
- Specific Fitting Shape
- 90 Degrees Elbow
- Application
- Air
- System of Measurement
- Metric
- Standards
- 2011/65/EC, 2002/95/EC (RoHS), DI: 94/9/EC (ATEX ), DI: 97/23/EC (PED), ISO 14743, 1907/2006 REACH
- Color
- Silver
- Maximum Operating Temperature
- 158 Degrees F
- Maximum Operating Pressure
- 18 barg
- Fitting Shape
- 90 Degrees Elbow
- Fitting Side A Connection Type
- Push-to-Connect
- Fitting Material
- Brass
- Minimum Operating Temperature
- 5 Degrees F
- Finish/Coating
- Nickel Plated
- Resistance Properties
- Impact-Resistant
- Fitting Side B Connection Type
- Push-to-Connect
- Operating Temperature - Minimum
- 5 Degrees F
- Finish
- Nickel-Plated
- Fitting Side 2 Connection Type
- Push-to-Connect
- Operating Temperature - Maximum
- 158 Degrees F
- For Media Type
- Air
- Fitting Side 1 Connection Type
- Push-to-Connect
- Series
- Legris
- Wire Color
- Silver
Dimensions
- Overall Length
- 13 1/2 mm
- Fitting Side B Tube Outer Diameter
- 3 mm
- Fitting Side A Tube Outer Diameter
- 3 mm
- Fitting Side 2 Tube Outer Diameter
- 3 mm
- Fitting Side 1 Tube Outer Diameter
- 3 mm
- Wire Rope Length
- 13 1/2 mm
- Length
- 13 1/2 mm
Description
Push-Fit Elbow Fitting, Application Air, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side A Tube Outer Diameter 3 mm, Fitting Side B Tube Outer Diameter 3 mm, Fitting Material Brass, Material Grade Not Applicable, Color Silver, Maximum Operating Pressure 18 barg, Maximum Operating Temperature 158 Degrees F, Overall Length 13 1/2 mm, Specific Fitting Shape 90 Degrees Elbow
