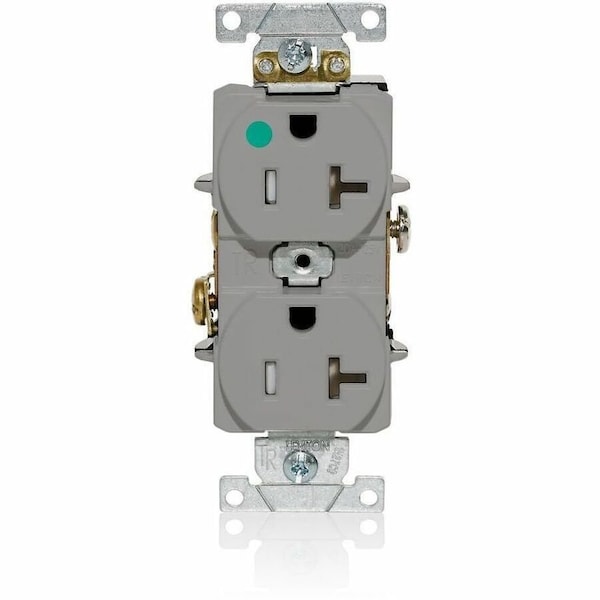

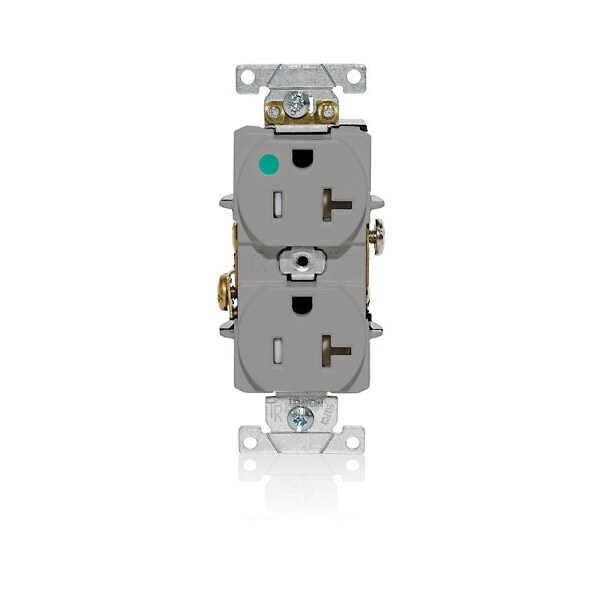

Duplex Outlet, Gray 20A, 125V, TR
Mfr # T8300-GY
Zoro # G222982068
product price:Â
$
15.49
/ea
Key Features
Face Plate Width
1.4 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Operating Temperature
-40 Degrees C
Overall Depth
1.2 in
Horsepower Rating
1 hp
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- T8300-GY
- Zoro #
- G222982068
- UPC #
- 078477896075
- Country of Origin
- Mexico
Dimensions
- Face Plate Width
- 1.4 in
- Mount Hole Center-to-Center Height
- 3.3 in
- Overall Depth
- 1.2 in
- Minimum Wire Size
- 14 AWG
- Face Plate Height
- 2.8 in
- Maximum Wire Size
- 10 AWG
Description
Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Gray, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-0
