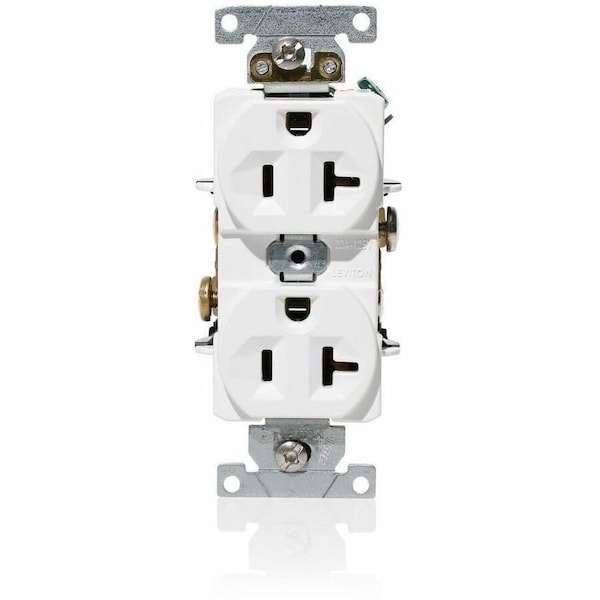

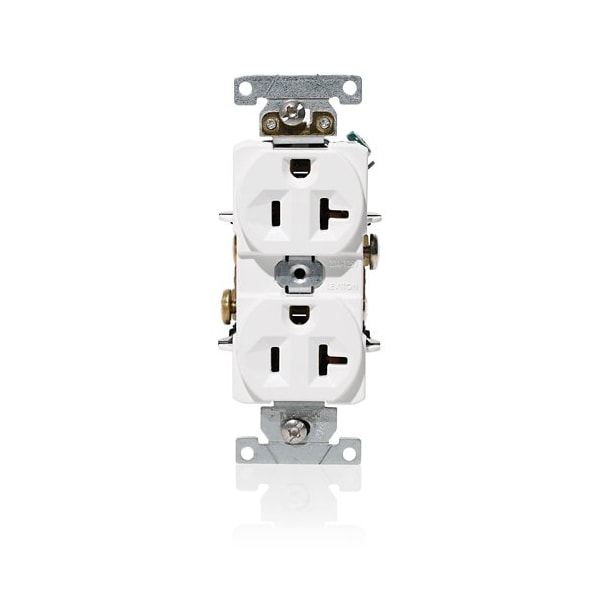

Duplex Outlet, White 20A 125V
Mfr # C5362-W
Zoro # G522982331
product price:Â
$
21.95
/ea
Key Features
Overall Depth
1.1 in
Number of Outlets
2
Mount Hole Center-to-Center Height
3.3 in
Contact Material
Phosphor Bronze
Number of Wires
3
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- C5362-W
- Zoro #
- G522982331
- UPC #
- 078477675113
- Country of Origin
- Mexico
- Number of Outlets
- 2
- Contact Material
- Phosphor Bronze
- Number of Wires
- 3
- Horsepower Rating
- 1 hp
- Market
- Industrial
- Wire Connection Type
- Screw Terminals
- Connection Orientation
- Straight
- Features
- Indented Face
- For Environment
- Food and Beverage, Oily/Greasy
- NEMA Receptacle Configuration
- 5-20R
- Housing Color
- White
- Wiring Method
- Back/Side
- Housing Material
- PBT Polyester
- Number of Poles
- 2
- Standards
- CSA, FULS Marking, UL
- Maximum Operating Temperature
- 75 Degrees C
- UL 94 Flammability Rating
- V-0
- Voltage Rating
- 125V AC
- Receptacle Type
- Duplex
- Item
- Duplex Receptacle Outlet
- Minimum Operating Temperature
- -40 Degrees C
- Grounding
- Grounded
- Current Rating
- 20 A
Description
Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color White, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-0
