Shop LEVITON

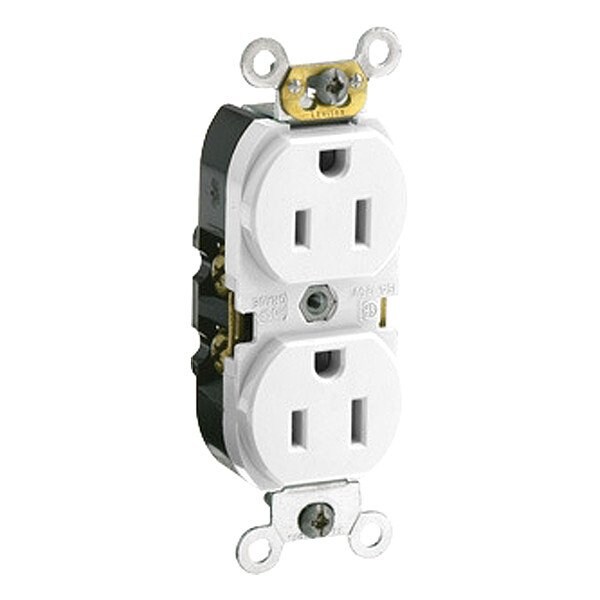

Duplex Receptacle Outlet, 15A, White, 125V

  • Mfr # CR015-W
  • Zoro # G022982381
product price:
$
3.29
/ea

Key Features

Minimum Operating Temperature
-40 Degrees C
Face Plate Height
2.6 in
Features
Smooth Face
Horsepower Rating
1/2 hp
For Environment
Food and Beverage, Oily/Greasy
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CR015-W
Zoro #
G022982381
UPC #
078477815243
Country of Origin
Mexico

Dimensions

Face Plate Height
2.6 in
Face Plate Width
1.6 in
Overall Depth
1.1 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Fits Chest Size
Smooth Face

Details

Minimum Operating Temperature
-40 Degrees C
Features
Smooth Face
Horsepower Rating
1/2 hp
For Environment
Food and Beverage, Oily/Greasy
Number of Outlets
2
Wiring Method
Side
Number of Wires
3
Resistance Properties
Tamper Resistant
Maximum Operating Temperature
60 Degrees C
Connection Orientation
Straight
Grounding
Grounded
Housing Material
Polypropylene
Receptacle Type
Duplex
Housing Color
White
Wire Connection Type
Screw Terminals
Number of Poles
2
NEMA Receptacle Configuration
5-15R
Voltage Rating
125V AC
Current Rating
15 A
UL 94 Flammability Rating
V-2
Item
Duplex Receptacle Outlet
Market
Commercial
Contact Material
Brass
Standards
CSA, FULS Marking, UL

Description

Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Housing Color White, Housing Material Polypropylene, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Side, Horsepower Rating 1/2 hp, UL 94 Flammability Rating V-2
