Shop LEVITON

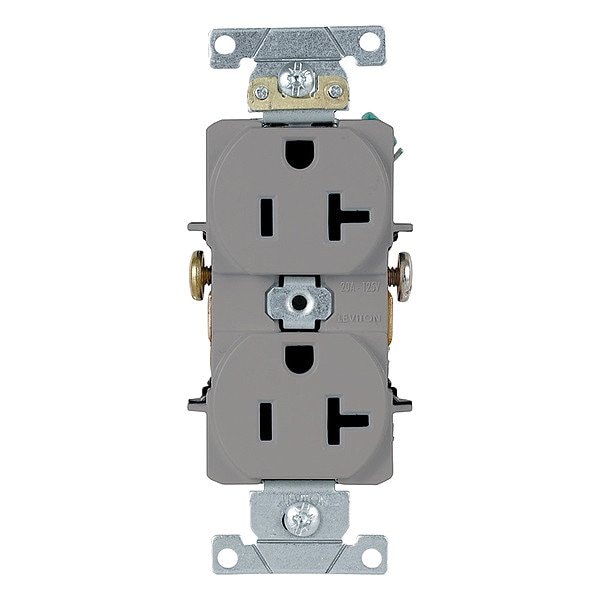

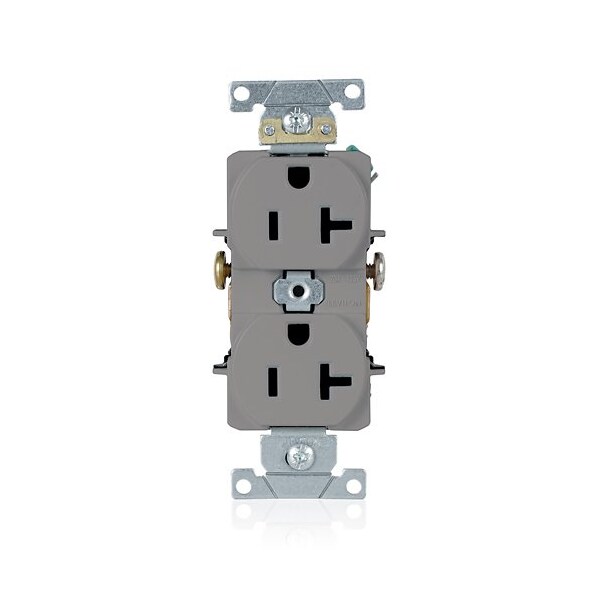

Duplex Receptacle/Oultet, 20 Amp

  • Mfr # 5342-GY

  • Zoro # G822982307

product price:
$
13.55
/ea

Key Features

Market
Industrial
Connection Orientation
Straight
Number of Outlets
2
Receptacle Type
Duplex
Voltage Rating
125V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5342-GY
Zoro #
G822982307
UPC #
078477788158
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Face Plate Height
2.8 in
Overall Depth
1.1 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.6 in

Details

Market
Industrial
Connection Orientation
Straight
Number of Outlets
2
Receptacle Type
Duplex
Voltage Rating
125V AC
For Environment
Food and Beverage, Oily/Greasy
Wire Connection Type
Screw Terminals
Resistance Properties
Tamper Resistant
Features
Smooth Face
Housing Color
Gray
Number of Poles
2
Minimum Operating Temperature
-40 Degrees C
Item
Duplex Receptacle/Oultet, 20 Amp
Maximum Operating Temperature
60 Degrees C
Horsepower Rating
1 hp
Wiring Method
Side
Standards
CSA, FULS Marking, UL
Number of Wires
3
Current Rating
20 A
Housing Material
Nylon
UL 94 Flammability Rating
V-2
Grounding
Grounded
Contact Material
Phosphor Bronze
NEMA Receptacle Configuration
5-20R

Description

Duplex Receptacle/Oultet, 20 Amp, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Gray, Housing Material Nylon, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-2
