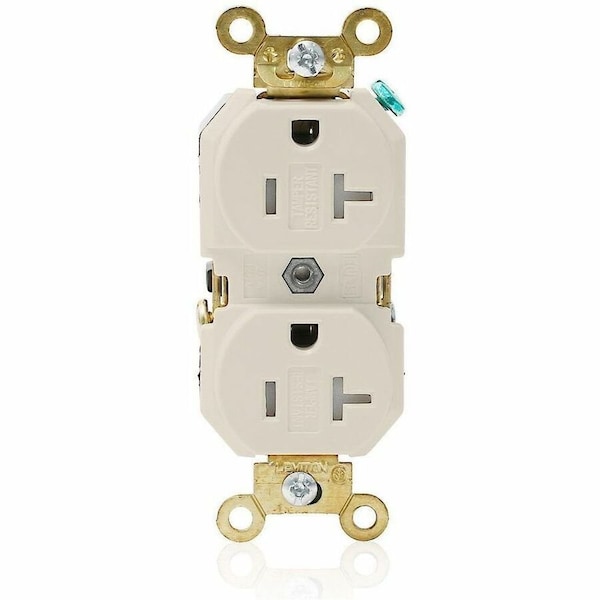

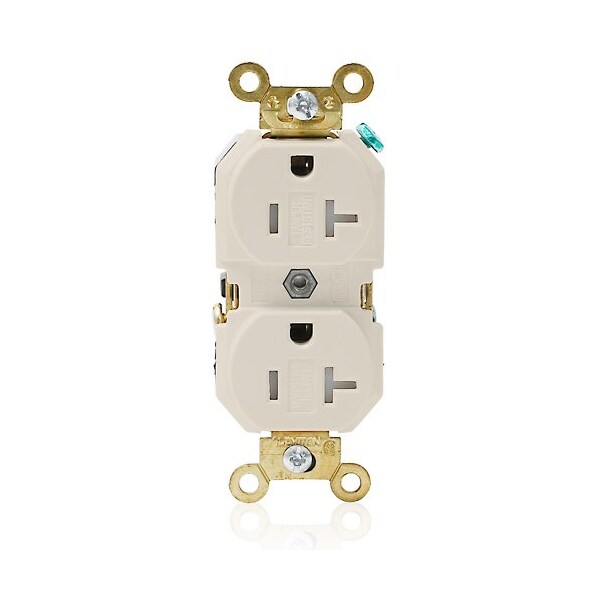

PlugsandReceptacles, 20A, 125VAC, Bl, Nylon

  • Mfr # 5362-SGT

  • Zoro # G622587962

product price:
$
23.19
/ea

Key Features

NEMA Receptacle Configuration
5-20R
Voltage Rating
125V AC
Maximum Wire Size
10 AWG
AFCI
No
Housing Color
Blue
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5362-SGT
Zoro #
G622587962
UPC #
78477710326
Country of Origin
Mexico
NEMA Receptacle Configuration
5-20R
Voltage Rating
125V AC
AFCI
No
Housing Color
Blue
Number of Gangs
1
Resistance Properties
Tamper Resistant
Mount Type
Flush
IP Rating
Not Rated
NEMA Enclosure Rating
Not Rated
Number of Poles
2
Item
Plugs and Receptacles
Surge Protection
No
Phase
Single
GFCI
No
Current Rating
20 A
Flange Type
Non-Flanged
Standards
CSA, FULS Marking, UL
Horsepower Rating
1 hp
Polarized
Yes
Wiring Method
Back/Side
Maximum Operating Temperature
75 Degrees C
Receptacle Type
Duplex
Number of Outlets
2
Number of Wall Plates Included
0
Grade
General Use
Wire Connection Type
Screw Terminals
Number of Wires
3
Shrouded
No
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
Grounding
Grounded
Housing Material
Nylon
Market
Industrial
Contact Material
Brass
Features
Smooth Face
For Environment
Food and Beverage, Oily/Greasy
Minimum Operating Temperature
-40 Degrees C
Cover Type
No Cover

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Blue, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
