  9. Female Receptcle, Blk, 2-4/0, 300/400Ac/Dc

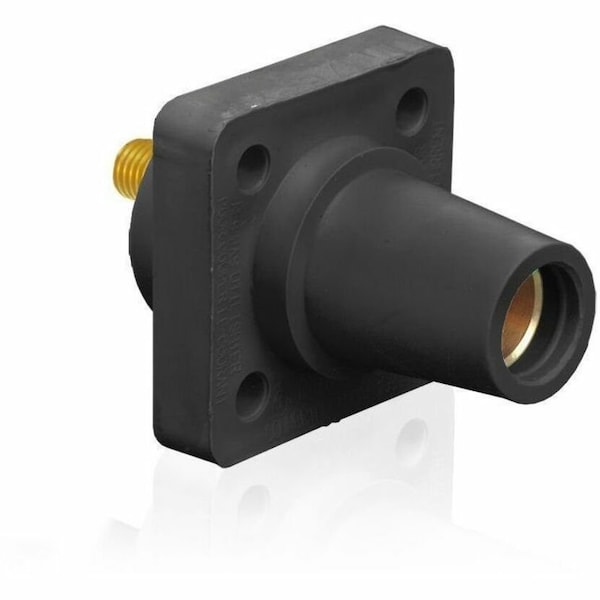

Leviton Female Receptcle, Blk, 2-4/0, 300/400Ac/Dc 16R24-UE - main

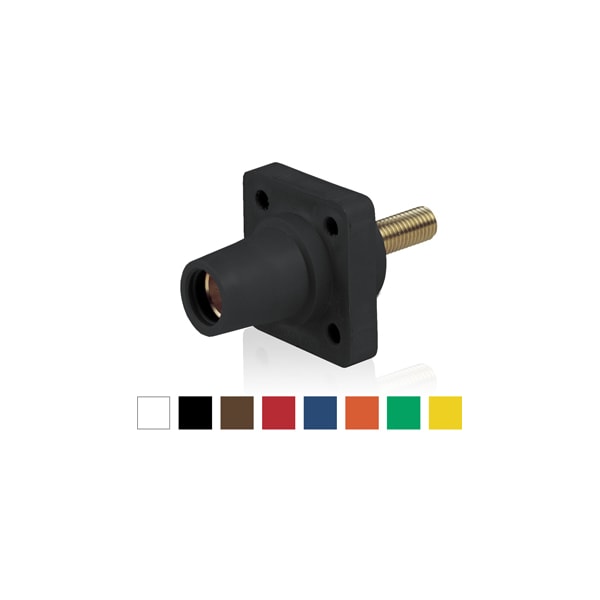

Female Receptcle, Blk, 2-4/0, 300/400Ac/Dc

  • Mfr # 16R24-UE

  • Zoro # G5670482

product price: $30.29
/ea

Key Features

Type
90 deg Cam Type Female Taper Nose
Series
16
Terminal Connection
Threaded Stud
Male/Female
Female
Current Rating
400 Amp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16R24-UE
Zoro #
G5670482
UPC #
78477717332
Country of Origin
Mexico

Dimensions

Height
7.2500 in
Width
10 in
Length
5.50 in
Dimensions
2.28 in L x 3.45 in W

Details

Item
Receptacle
Type
90 deg Cam Type Female Taper Nose
Series
16
Terminal Connection
Threaded Stud
Male/Female
Female
Current Rating
400 Amp
Voltage Rating
600VAC/250VDC
NEMA Rating
3R, 4X, 12
Color
Black
Contact Material
Brass
Material
Thermoplastic Elastomer
Housing Material
Santoprene TPV
Standards
UL & CSA
Mounting
Screw Mount
Amps AC/DC
300/400AC/DC
Fits
Male Plug
Conductor Material
Solid Brass
Cable Range
2 to 4/0
Single Pole Device Style
Taper Nose
Application
Motor, Generator Splices, Mining, Construction Sites, Commercial, Navy Shipbuilding, Repair, Ot
Amperage Rating
400
Mounting Type
Panel
Specifications
3/4 in L Threaded Stud
Standard
UL: 1691

Description

16 Series Female Panel Receptacle, Cam-Type, 90-Degree, Threaded Stud Length - 3/4", Taper Nose, 400 Amp, Cable Range - #2 to 4/0 AWG-Black
