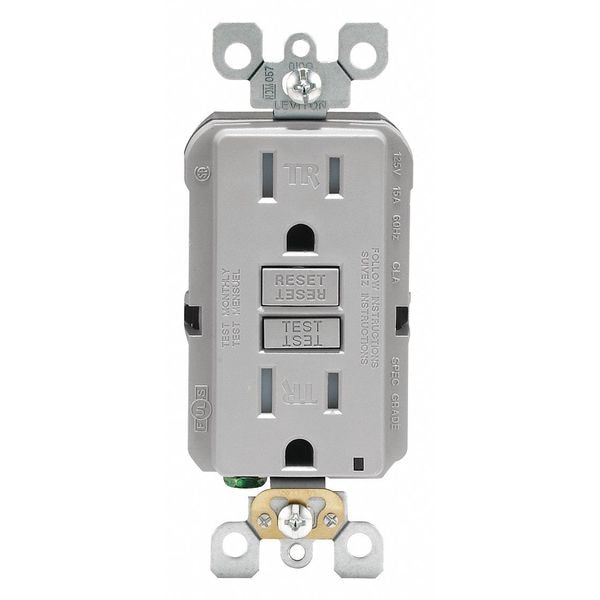

Leviton GFI Receptacle GFTR1-GY - main

GFI Receptacle

  • Mfr # GFTR1-GY

  • Zoro # G404392913

product price: $21.85
/ea

Key Features

Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
Grounding
Grounded
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFTR1-GY
Zoro #
G404392913
UPC #
07847748714
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

Item
GFI Receptacle
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Gray
Number of Outlets
2
Housing Material
Polycarbonate
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
Color - Plugs and Receptacles
Gray
Tamper Resistant
Yes
Amps - Plugs and Receptacles
15 A
Self-Testing
Yes
Power Indicator
Yes
Surge Suppression
Yes
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Weather Resistant - Plugs and Receptacles
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Voltage - Plugs and Receptacles
125V
Wiring Method - Plugs and Receptacles
Back and Side
Mounting Type - Plugs and Receptacles
Flush
Wiring Method
Back, Side
HP
1 hp
Application Environment
Commercial
Item - Plugs and Receptacles
GFCI Receptacle
Outlet Type - Plugs and Receptacles
Standard Duplex
Includes Mounting Hardware
Yes
Mount Type
Flush
Visual Indicator Lights
Power Connected
Hub Type
Feed Through
Receptacle Type
Decorator Duplex
Voltage Rating
125V AC
Wire Connection Type
Screw Terminals
Market
Commercial
Resistance Properties
Tamper Resistant
Self Testing
Yes
Surge Protection
No
Minimum Operating Temperature
-31 Degrees F
Includes
Faceplate, Wallplate
Grade
Federal Specification
Horsepower Rating
1 hp
Maximum Operating Temperature
150.8 Degrees F
Contact Material
Brass

Description

GFI Receptacle, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color Gray, Housing Material Polycarbonate, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
