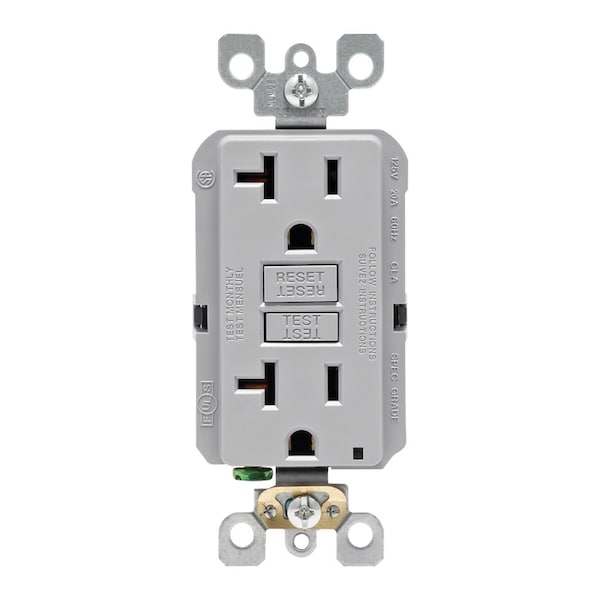

Leviton 20 amps 125 V Gray GFCI Outlet 5-20R 1 pk

  • Mfr # GFNT2-KGY

  • Zoro # G1934089


product price: $24.25
/ea

Key Features

Grounding
Self Grounding
Type
Standard Duplex
Color
Gray
Voltage
125 VAC
Grounding Screw
Plated Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNT2-KGY
Zoro #
G1934089
UPC #
78477714669
Country of Origin
China

Details

Grounding
Self Grounding
Type
Standard Duplex
Color
Gray
Voltage
125 VAC
Grounding Screw
Plated Steel
Operating Temperature
-35C to +66C
Wire
3
CSA-C22.2 No. 144.1-06
File LR-57811
UL498
Yes
Terminal Accom.
14-10 AWG
Line Contacts
Brass Triple Wipe .031 Thick
CSA C22.2 No. 42
Yes
NEMA
5-20R, WD-6
Strap Material
Galvanized Steel
Feature
Self-Test
Short Circuit Current Rating
10KA
Body Material
Polycarbonate
At Rated Voltage
1 HP
Face Material
Thermoplastic
Termination
Back & Side
UL 943
File E48380
Trip Level
Class A, 5mA plus or minus 1mA
Fed Spec WC-596
Yes
Yoke
Zinc-Plated Steel
ANSI
C-73
Grade
Residential/Commercial Specification Grade
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Standards and Certifications
UL/CSA
Terminal Screws
Plated Steel
Clamps
Brass
Pole
2
Amperage
20 A
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06

Description

The SmartlockPro Self-Test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton's patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro Self-Test GFCI is the smart choice in ground fault circuit interrupter protection.


  • • Self tests for safety
  • • Slim design for easier installation
  • • Simple - status indicator light provides simple, intuitive feedback
  • • External back wire clamps provide visual indication of proper wire seating
  • • Terminals allow for easy wiring options - back and side wire capable
  • • Electronics are designed to minimize any false triggers
