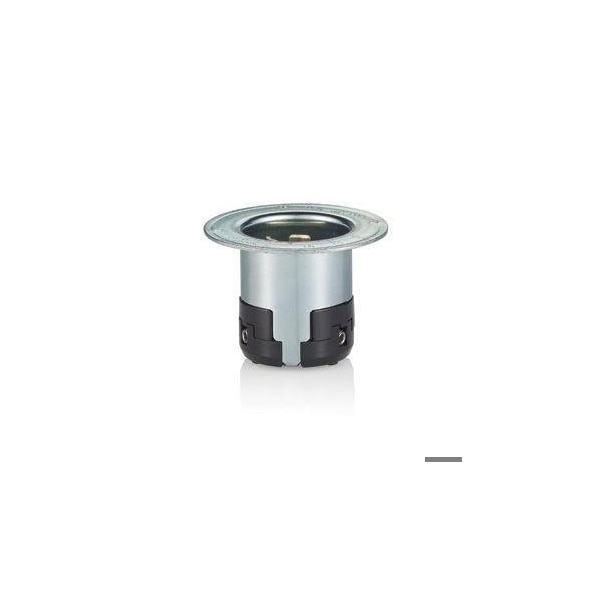

Leviton Locking Inlet, 50 A, 480V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, Gray CS8475 - main

Locking Inlet, 50 A, 480V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, Gray

  • Mfr # CS8475

  • Zoro # G616091253

product price:  $119.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
480V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CS8475
Zoro #
G616091253
UPC #
078477326268
Country of Origin
Mexico

Dimensions

Overall Depth
2.42 in
Mount Hole Center-to-Center Width
1.1 in
Maximum Wire Size
4 AWG
Minimum Wire Size
10 AWG
Flange Height
3.8 in
Face Diameter
2.03 in
Flange Width
3.5 in
Flange Diameter
3.5 in
Mount Hole Center-to-Center Height
3.82 in

Details

Item
Locking Inlet
NEMA Receptacle Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
480V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
CSA C22.2 No 42 File LR-406, RoHS, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
NEMA Enclosure Rating
Not Rated
IP Rating
Not Rated
Flange Material
Steel
Wiring Style
Standard
Shrouded
Yes
Midget Locking
No
Includes Mounting Hardware
No
Housing Material
Nylon
For Environment
Dry
Minimum Operating Temperature
-40 Degrees F
NEMA Plug Configuration
Non-NEMA
Number of Blades
4
Flange Shape
Round
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
Market
Industrial
Grade
Federal Specification
Polarized
Yes
Number of Gangs
1
Horsepower Rating
7 1/2 hp
Series
Insulgrip
Includes
Mounting Hardware
UL 94 Flammability Rating
V-2
Features
Accepts Slotted and Phillips Head Drivers
Number of Outlets
1

Description

Fifty Amp
