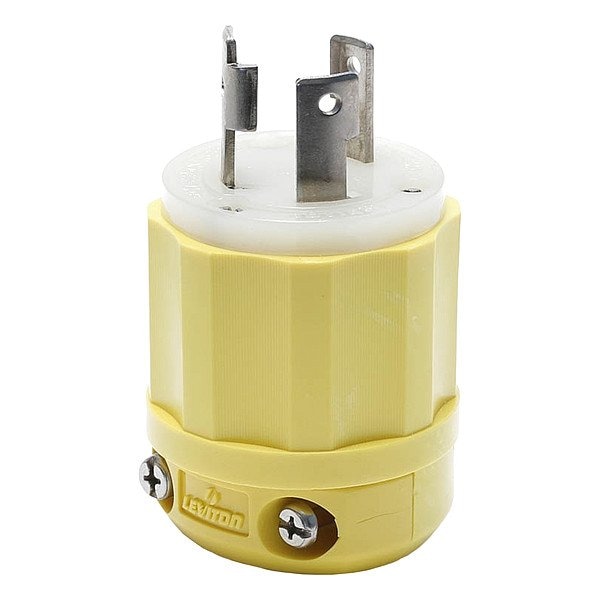

LockingPlug, 30A, 2hp, White;Yellow, Nylon
Mfr # 26CM-21
Zoro # G522728823
product price:Â
$
57.49
/ea
Key Features
For Environment
Industrial, Marine
Minimum Operating Temperature
-40 Degrees C
Phase
Single
Standards
ANSI C-73, NEMA WD-6, NOM 057, UL 498, UL Fed Spec W-C-596, UL File No. E13393
Power and Ground Indicating Light
No
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 26CM-21
- Zoro #
- G522728823
- UPC #
- -
- Country of Origin
- United States
Dimensions
- For Maximum Cable Diameter
- 0.43 in
- For Minimum Cable Diameter
- 0.218 in
Details
- For Environment
- Industrial, Marine
- Minimum Operating Temperature
- -40 Degrees C
- Phase
- Single
- Standards
- ANSI C-73, NEMA WD-6, NOM 057, UL 498, UL Fed Spec W-C-596, UL File No. E13393
- Power and Ground Indicating Light
- No
- Horsepower Rating
- 2 hp
- Item
- Locking Plug
- Housing Material
- Nylon
- IP Rating
- Not Rated
- Number of Poles
- 2
- Grounding
- Grounded
- Features
- Industry Exclusive Limited Lifetime Warranty
- Resistance Properties
- Corrosion Resistant
- Grade
- Federal Specification
- Maximum Operating Temperature
- 60 Degrees C
- Current Rating
- 30 A
- Blade Material
- Nickel-Plated Brass
- NEMA Plug Configuration
- L6-30P
- Number of Blades
- 3
- Midget Locking
- No
- Voltage Rating
- 250V AC
- Housing Color
- White, Yellow
Description
Locking Plug, Current Rating 30 A, Housing Color White, Yellow, Housing Material Nylon, NEMA Plug Configuration L6-30P, Number of Blades 3, Number of Poles 2, Phase Single, Resistance Properties Corrosion Resistant, Voltage Rating 250V AC, For Maximum Cable Diameter 0.43 in, For Minimum Cable Diameter 0.218 in, Grade Federal Specification, Grounding Grounded, Horsepower Rating 2 hp, IP Rating Not Rated, Midget Locking No
