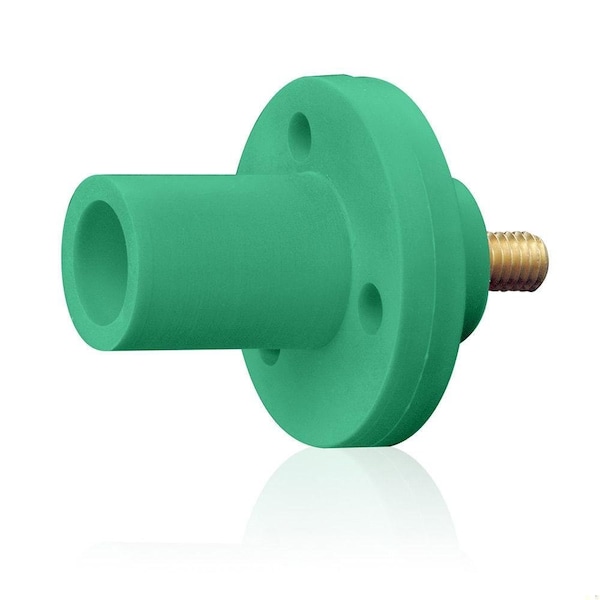

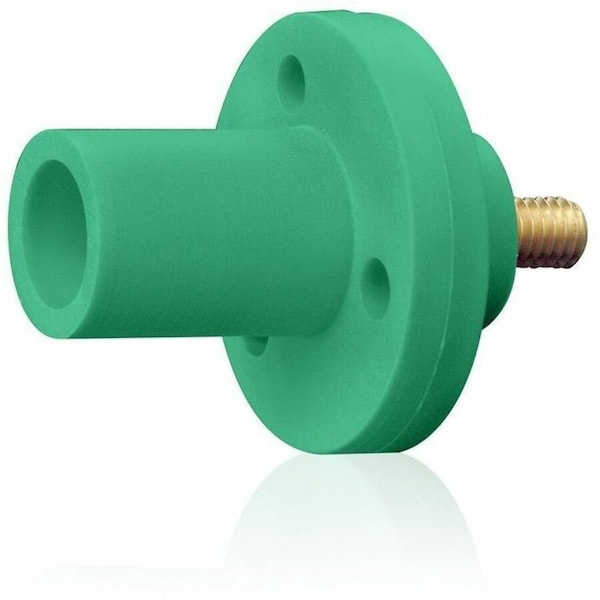

Male Panel Mount Receptacle
Mfr # 15R21-UG
Zoro # G515866976
product price:Â
$
30.35
/ea
Key Features
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
Standards
CSA C22.2 No 1691, UL 1691
Housing Color
Green
Gender
Male
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 15R21-UG
- Zoro #
- G515866976
- UPC #
- 078477711248
- Country of Origin
- Mexico
Dimensions
- Maximum Wire Size
- 2 AWG
- Minimum Wire Size
- 8 AWG
- Threaded Stud Termination Length
- 0.5 in
Details
- Item
- Single Pole Receptacle
- Current Rating
- 150 A
- Voltage Rating
- 600V AC, 600V DC
- Standards
- CSA C22.2 No 1691, UL 1691
- Housing Color
- Green
- Gender
- Male
- End Type
- Taper Nose
- Housing Material
- Santoprene TPV
- Contact Material
- Brass
- Connection Orientation
- Angled
- NEMA Enclosure Rating
- 3R
- Mounting Style
- Through Hole Mounting
- Phase
- Single
- Flange Shape
- Rectangular
- Terminal Connection Type
- Threaded Stud
- For Location
- Indoor, Outdoor
- Series
- 15
Description
Single Pole Receptacle, Connection Orientation Angled, Current Rating 150 A, Gender Male, Housing Color Green, Housing Material Santoprene TPV, Maximum Wire Size 2 AWG, Minimum Wire Size 8 AWG, Phase Single, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Shape Rectangular, NEMA Enclosure Rating 3R, Standards CSA C22.2 No 1691, UL 1691, Terminal Connection Type Threaded Stud, For Location Indoor, Outdoor, Mounting Location Surface
