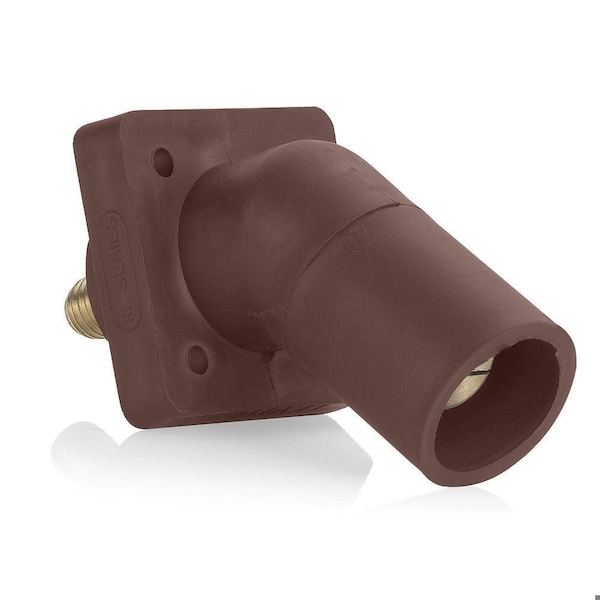

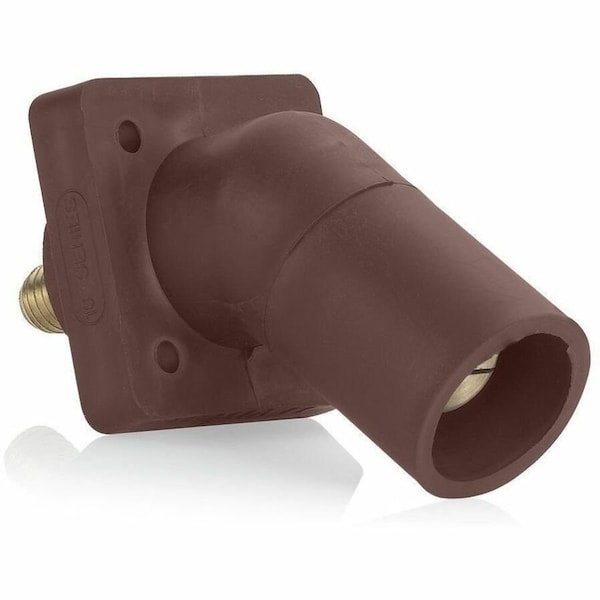

Male Receptacle
Mfr # 16R29-UH
Zoro # G815866911
product price: $70.79
/eaKey Features
Standards
UL 1691
Voltage Rating
600V AC, 600V DC
Current Rating
400 A
Contact Material
Brass
Terminal Connection Type
Threaded Stud
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
16R29-UH
Zoro #
G815866911
UPC #
078477718315
Country of Origin
Mexico
Dimensions
Maximum Wire Size
4/0 AWG
Stud Thread Size
1/2"-13
Minimum Wire Size
2 AWG
Overall Length
3.73 in
Flange Width
1.04 in
Overall Width
2.29 in
Flange Height
2.29 in
Details
Standards
UL 1691
Voltage Rating
600V AC, 600V DC
Item
Single Pole Receptacle
Current Rating
400 A
Contact Material
Brass
Terminal Connection Type
Threaded Stud
Mounting Style
Threaded Mounting
Housing Material
Santoprene TPV
Connection Orientation
Angled
Gender
Male
End Type
Taper Nose
Flange Shape
Square
Phase
Single
Housing Color
Brown
For Location
Indoor, Outdoor
NEMA Enclosure Rating
3R
Description
Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Male, Housing Color Brown, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Phase Single, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Diameter Not Applicable, Flange Height 2.29 in, Flange Shape Square, Flange Width 1.04 in, NEMA Enclosure Rating 3R, Standards UL 1691, Terminal Connection Type Threaded Stud, For Location Indoor, Outdoor
