  11. Outlet Strip, Surge, Rack Mounted, 4 5-15R, 5-15P, 15 ft., White

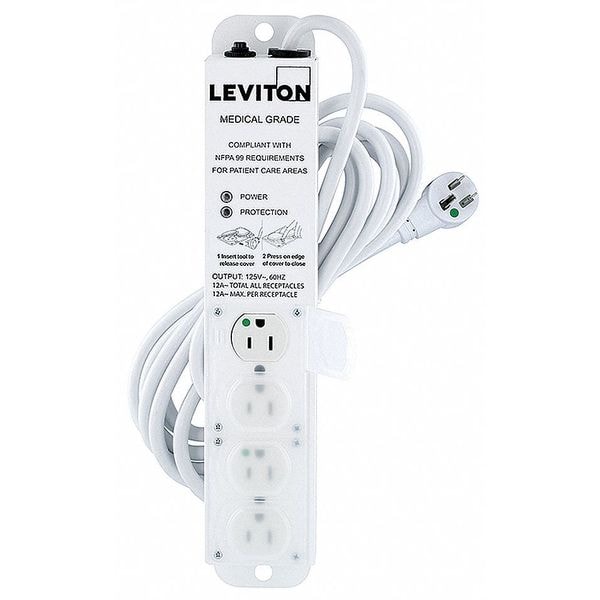

Leviton Outlet Strip, Surge, Rack Mounted, 4 5-15R, 5-15P, 15 ft., White 5304M-1S5 - main

Outlet Strip, Surge, Rack Mounted, 4 5-15R, 5-15P, 15 ft., White

  • Mfr # 5304M-1S5

  • Zoro # G404186772

product price: $135.21
/ea
Free Shipping & Returns

Key Features

Type
Surge, Rack Mounted
Total Number of Outlets
4
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5304M-1S5
Zoro #
G404186772
UPC #
078477611838
Country of Origin
Mexico

Dimensions

Cord Length
15 ft.
Height
1 5/8 in
Length
13 3/4 in
Width
2 5/8 in

Details

Item
Outlet Strip
Type
Surge, Rack Mounted
Number of Outlets
4
Total Number of Outlets
4
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Color
White
Gauge/Conductor
14/3
Standards
ANSI/IEEE: Category A, NFPA: NFPA 99 2012 ed, UL 1363A and CSA C22.2: No. 21, UL 1449 3rd Ed and CSA C22.2: No. 8, UL 60601-1 and CSA C22.2: No.60601-1, UL 60950-1 and CSA C22.2: No. 60950-1
Application
Hospital and Medical Facility
Power Indicator
Yes
Trade Designation
SJT
Max. Surge Current
27 kA
Max. Amps
15 A
Surge Protection Indicator
Yes
Housing Material
Steel
Noise Attenuation
-6 to -29dB
Special Features
Easily Accommodates Surface Mounting and IV Pole Mounting With the Use of the Mounting Bracket, Heavy Duty Steel Construction Withstands the Rigors of Demanding Environments, Locking Safety Covers are Splash-Resistant and Protect From Incidental Contact With Unused Outlets
Rated Joules
644
Voltage
125V AC
For Use With
Isolated Power Systems
Hz
60 Hz Hz
Medical Facility Use
Outside Patient Care Areas (UL 1449); Patient Care - Only When Permanently Mounted (UL 1363A); Patient Care (UL 60601-1)
Mounting Style
Mounting Hole
Maximum Surge Current, Per Mode (L-N)
27kA
Enclosure
Powder Coated Steel
Number of Receptacles
4
Operating Temperature
0°C to 40°C
Voltage Protection Rating (VPR) L-N, L-G, N-G
600V, 600V, 500V
UL 60950-1 & CSA C22.2
No. 60950-1
Outlet Covers
Polypropylene
Frequency
60Hz
Maximum Leakage Current
<100µA
Noise Filtering
-6dB to -29dB (100kHz to 100MHz)
Line Cord
#14/3 SJT
Surge Protection
Yes
UL 1363A & CSA C22.2
No. 21
Grade
Medical
HG Outlet Configuration
NEMA 5-15R
Joules Rating
644J

Description

Surge Protected Outlet Strip, Application Hospital and Medical Facility, Housing Material Steel, Total Number of Outlets 4, Max. Amps 15 A, Cord Length 15 ft, Power Indicator Yes, Receptacle Configuration Hospital Grade, Plug Configuration NEMA 5-15P, Mounting Style Screw, Medical Facility Use Outside Patient Care Areas (UL 1449); Patient Care - Only When Permanently Mounted (UL 1363A); Patient Care (UL 60601-1), Voltage 125V AC, Length 13 3/4 in
