Shop LEVITON

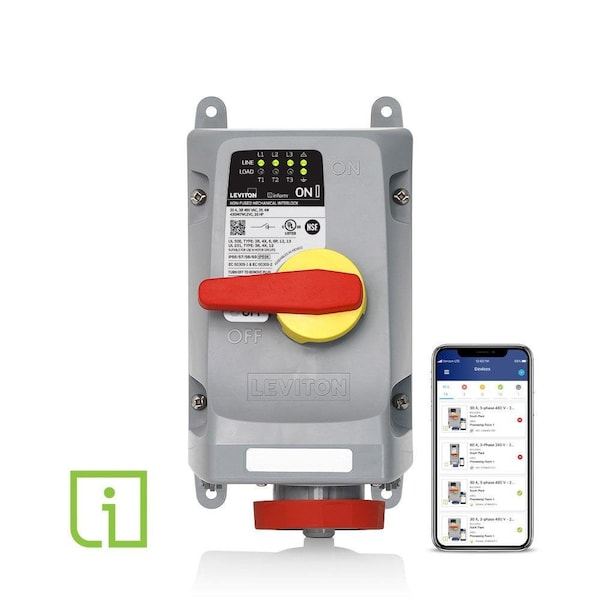

Pin and Sleeve Mechanical Interlock

  • Mfr # 430MI7WLEVC

  • Zoro # G616091475

product price:  $1,452.99
/ea
Free Shipping & Returns

Key Features

Housing Material
PBT
Handle Material
PBT+PC with TPE Overmold
Housing Color
Red
Minimum Operating Temperature
-40 Degrees C
Resistance Properties
UV/Sunlight Resistant, Watertight
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
430MI7WLEVC
Zoro #
G616091475
UPC #
078477380772
Country of Origin
Mexico

Dimensions

Overall Height
12.16 in
Overall Depth
8.29 in
Overall Width
8.86 in

Details

Item
Mechanical Interlock
Housing Material
PBT
Handle Material
PBT+PC with TPE Overmold
Housing Color
Red
Minimum Operating Temperature
-40 Degrees C
Resistance Properties
UV/Sunlight Resistant, Watertight
Current Rating
30 A
Horsepower Rating
10 hp
UL 94 Flammability Rating
V-0
Fuse Protection
Non-Fused
IP Rating
IP66, IP67, IP68, IP69, IP69K
Voltage Rating
480V AC
Standards
CSA C22.2 No. 94.1-07, IEC Rating 60309-1, 60309-2, 60309-4, NSF 14159-1, UL 1682, UL 1686, UL 50, UL 50E, UL 60947-4-1, UL 60947-1, UL 746
Number of Poles
3
Maximum Operating Temperature
60 Degrees C
Electrical Connection Type
Pin and Sleeve
Phase
Three
Contact Material
Nickel-Plated Brass
NEMA Enclosure Rating
12, 3R, 4X
Number of Wires
4
Compatible with Series
LEV
Features
Wi-Fi Remote Monitoring
Series
LEV
Circuit Breaker
No
Reverse Service
No
Locking Handle
Yes

Description

Pin and Sleeve Mechanical Interlock
