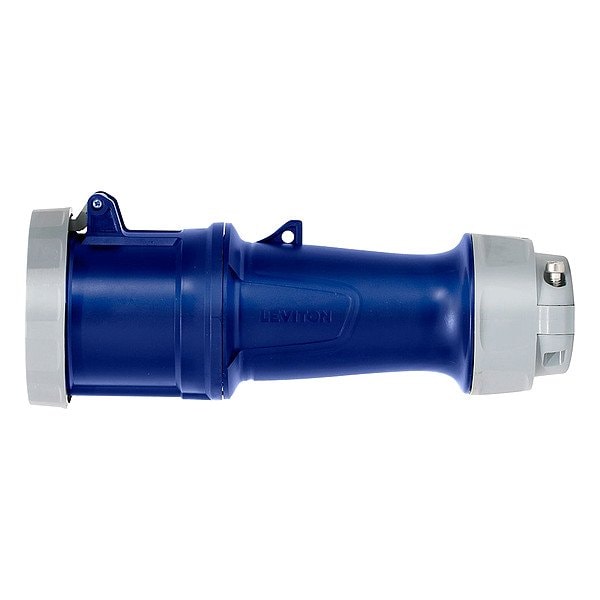

Leviton Pin & Sleeve Connector, 100/125 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, NEMA 3R, 4X, 6P, 12 4100C9WLEV - main

Pin & Sleeve Connector, 100/125 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, NEMA 3R, 4X, 6P, 12

  • Mfr # 4100C9WLEV

  • Zoro # G315554905

product price:  $523.99
/ea
Free Shipping & Returns

Key Features

Current Rating
100/125 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4100C9WLEV
Zoro #
G315554905
UPC #
078477665688
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
1.89 in
For Minimum Cable Diameter
0.725 in
Minimum Wire Size
6 AWG
Maximum Wire Size
1 AWG
Overall Length
7.84 in
Face Diameter
2.741 in

Details

Item
Pin & Sleeve Connector
Current Rating
100/125 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP68, IP69K
NEMA Enclosure Rating
3R, 4X, 6P, 12
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Switch Rated
No
Grounding Style
IEC
Housing Color
Blue
Cap Type
Flip-Up Cap, Screw-On Cap
Standards
CE, CSA C22.2, IEC Rating 60309-1 and 60309-2, NOM, UL 1686 C2, UL 1682
Resistance Properties
Corrosion Resistant, UV Resistance
Features
Improved Speed of Assembly with Threaded Housings with Fewer Screws
Market
Industrial
Maximum Operating Temperature
150.8 Degrees F
Power Indicating Light
No
Shrouded
Yes
Minimum Operating Temperature
-31 Degrees F
Reverse Service
No
UL 94 Flammability Rating
HB, V-0
For Environment
Industrial
Housing Material
Nylon
Horsepower Rating
10 hp
For Location
Outdoor
Grounding
Grounded

Description

LEV Series IEC Pin and Sleeve Connector
