Plugs and Receptacles
Mfr # 16R28-UY
Zoro # G122587660
product price:Â $82.49
/eaKey Features
Mounting Style
Through Hole Mounting
Resistance Properties
Chemical Resistant, UV/Sunlight Resistant
Gender
Female
Voltage Rating
600V AC, 600V DC
For Location
Outdoor
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 16R28-UY
- Zoro #
- G122587660
- UPC #
- 78477573341
- Country of Origin
- Mexico
Dimensions
- Minimum Wire Size
- 2/0 AWG
- Maximum Wire Size
- 4/0 AWG
Details
- Mounting Style
- Through Hole Mounting
- Resistance Properties
- Chemical Resistant, UV/Sunlight Resistant
- Gender
- Female
- Voltage Rating
- 600V AC, 600V DC
- For Location
- Outdoor
- Housing Color
- Yellow
- Item
- Single Pole Receptacle
- Flange Shape
- Square
- Housing Material
- Santoprene TPV
- Minimum Operating Temperature
- -40 Degrees F
- Maximum Operating Temperature
- 185 Degrees F
- Series
- 16
- Connection Orientation
- Angled
- Standards
- CSA, UL
- Current Rating
- 400 A
- Terminal Connection Type
- Double Set Screw
- NEMA Enclosure Rating
- 3R
- End Type
- Taper Nose
Description

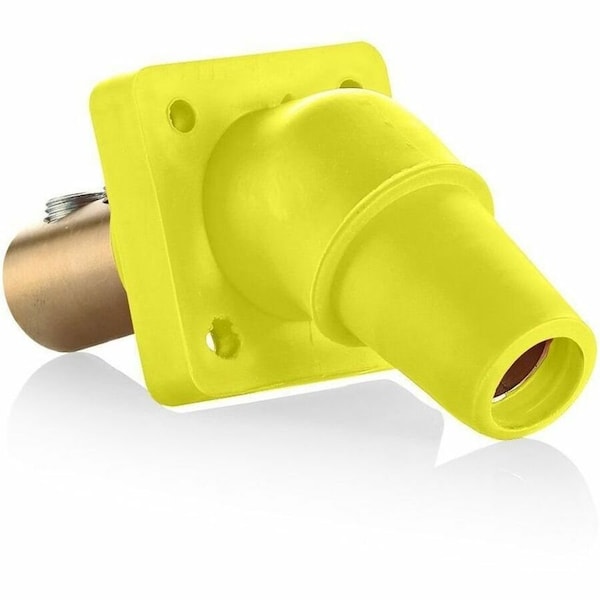

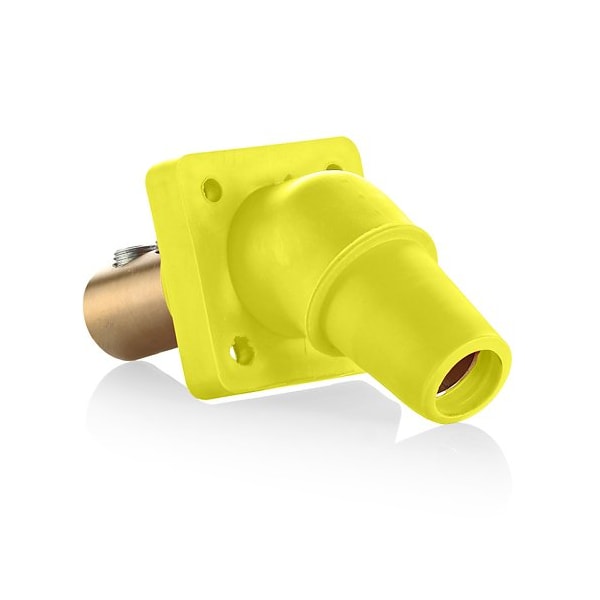

Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Female, Housing Color Yellow, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2/0 AWG, Voltage Rating 600V AC, 600V DC, End Type Taper Nose, Flange Shape Square, NEMA Enclosure Rating 3R, Standards CSA, UL, Terminal Connection Type Double Set Screw, For Location Outdoor, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -40 Degrees F
