Shop LEVITON
See all product information
Plugs and Receptacles

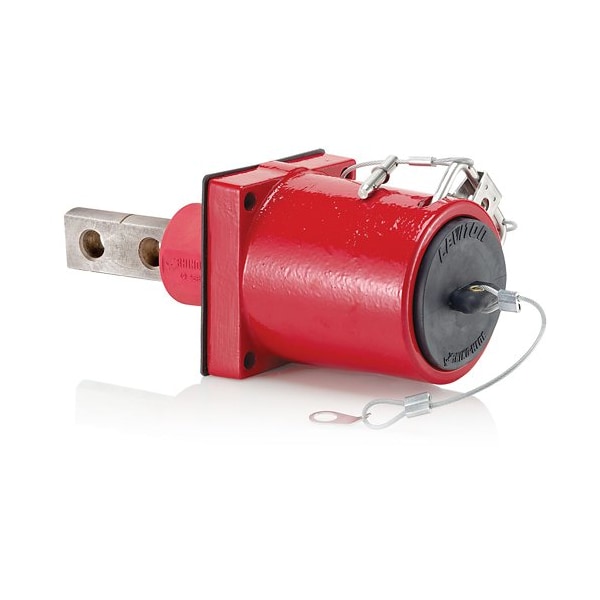

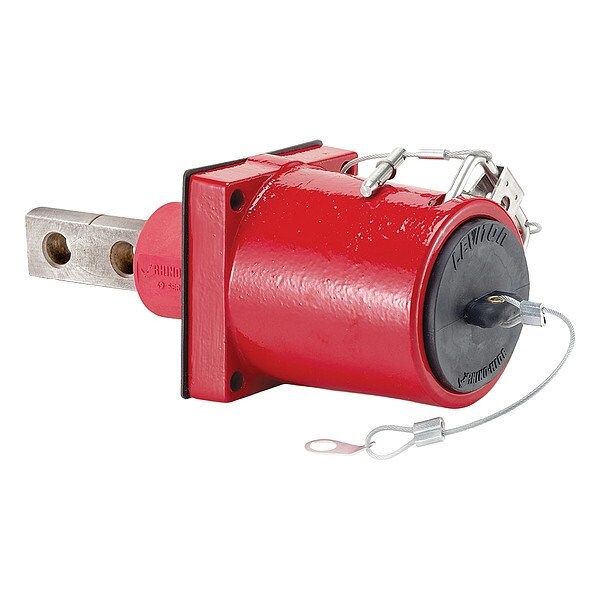

Mfr # 49MR2-XR
Zoro # G422586813
product price:Â $1,369.99
/ea
Free Shipping & Returns
Key Features
End Type
45 Degrees Clevis Pin
Maximum Operating Temperature
275 Degrees F
Mounting Style
Through Hole Mounting
Gender
Male
Terminal Connection Type
Two-Hole Bus Bar
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
49MR2-XR
Zoro #
G422586813
UPC #
78477387382
Country of Origin
Mexico
Dimensions
Overall Width
4.49 in
Maximum Wire Size
777 kcmil
Overall Length
10.53 in
Flange Height
4.49 in
Minimum Wire Size
313 kcmil
Flange Width
4.49 in
Details
End Type
45 Degrees Clevis Pin
Maximum Operating Temperature
275 Degrees F
Mounting Style
Through Hole Mounting
Gender
Male
Terminal Connection Type
Two-Hole Bus Bar
Housing Material
Thermoplastic Elastomer
Current Rating
1,135 A
Series
49
Housing Color
Red
Minimum Operating Temperature
-76 Degrees F
Connection Orientation
Straight
Standards
UL Recognized
Item
Single Pole Receptacle
Voltage Rating
1000V AC, 1000V DC
NEMA Enclosure Rating
3R
Resistance Properties
Corrosion Resistant
Flange Shape
Square
Description
Single Pole Receptacle, Connection Orientation Straight, Current Rating 1,135 A, Gender Male, Housing Color Red, Housing Material Thermoplastic Elastomer, Maximum Wire Size 777 kcmil, Minimum Wire Size 313 kcmil, Voltage Rating 1000V AC, 1000V DC, End Type 45 Degrees Clevis Pin, Flange Height 4.49 in, Flange Shape Square, Flange Width 4.49 in, NEMA Enclosure Rating 3R, Standards UL Recognized, Terminal Connection Type Two-Hole Bus Bar, Maximum Operating Temperature 275 Degrees F
