Shop LEVITON

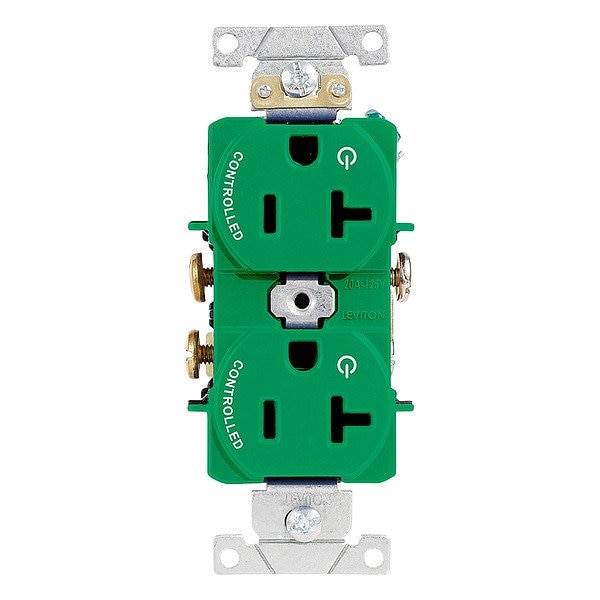

PlugsandRcptcls, 20A, 125VAC, Grn, Nylon, PK1

  • Mfr # 5362-S2N

  • Zoro # G222586259

product price:
$
279.99
/pk 10, $28.00/ea
Free Shipping & Returns

Key Features

Polarized
Yes
NEMA Receptacle Configuration
5-20R
AFCI
No
Receptacle Type
Duplex
Grade
General Use
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5362-S2N
Zoro #
G222586259
UPC #
78477722619
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG

Details

Polarized
Yes
NEMA Receptacle Configuration
5-20R
AFCI
No
Receptacle Type
Duplex
Grade
General Use
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Features
Smooth Face, Two Outlets Marked "Controlled"
Maximum Operating Temperature
75 Degrees C
Item
Plugs and Receptacles
Housing Color
Green
Number of Gangs
1
Wiring Method
Back/Side
Surge Protection
No
Current Rating
20 A
Minimum Operating Temperature
-40 Degrees C
NEMA Enclosure Rating
Not Rated
GFCI
No
Voltage Rating
125V AC
Mount Type
Flush
IP Rating
Not Rated
Number of Wall Plates Included
0
Flange Type
Non-Flanged
Phase
Single
Market
Industrial
For Environment
Food and Beverage, Oily/Greasy
Standards
CSA, FULS Marking, UL
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
Housing Material
Nylon
Grounding
Grounded
Horsepower Rating
1 hp
Contact Material
Brass
Number of Outlets
2
Shrouded
No
Cover Type
No Cover

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Green, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable, Standards CSA, FULS Marking, UL
