Shop LEVITON

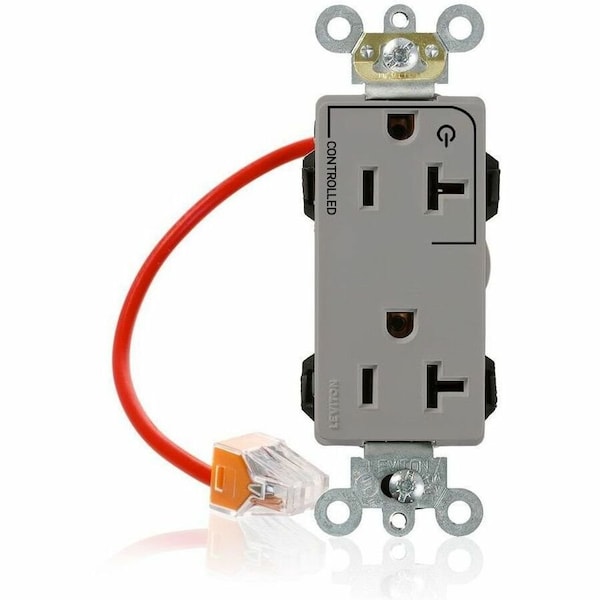

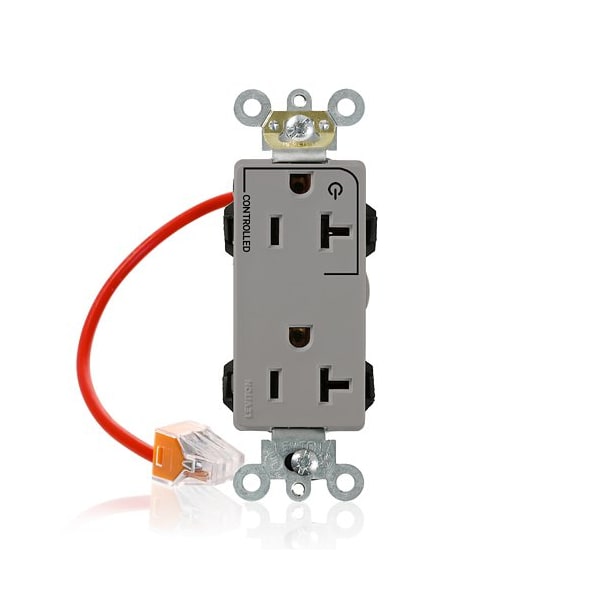

PlugsandReceptacles, 20A, 125VAC, Gry, Nylon

  • Mfr # M1636-1CG

  • Zoro # G022588071

product price:
$
22.29
/ea

Key Features

IP Rating
Not Rated
For Environment
Food and Beverage, Oily/Greasy
Wire Connection Type
Snap-In Module
Grounding
Grounded
AFCI
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M1636-1CG
Zoro #
G022588071
UPC #
78477747957
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Face Plate Height
2.8 in
Overall Depth
1.3 in

Details

IP Rating
Not Rated
For Environment
Food and Beverage, Oily/Greasy
Wire Connection Type
Snap-In Module
Grounding
Grounded
AFCI
No
NEMA Receptacle Configuration
5-20R
Item
Plugs and Receptacles
Number of Outlets
2
Polarized
Yes
Flange Type
Non-Flanged
Market
Industrial
Standards
CSA, FULS Marking, UL
Number of Poles
2
Grade
General Use
Maximum Operating Temperature
60 Degrees C
GFCI
No
Current Rating
20 A
Number of Gangs
1
Number of Wall Plates Included
0
Shrouded
No
Housing Material
Nylon
Cover Type
No Cover
Phase
Single
Housing Color
Gray
Mount Type
Flush
NEMA Enclosure Rating
Not Rated
Voltage Rating
125V AC
Horsepower Rating
1 hp
Features
Smooth Face
Connection Orientation
Straight
Number of Wires
3
Wiring Method
Back
Surge Protection
No
Minimum Operating Temperature
-40 Degrees C
Receptacle Type
Duplex
Contact Material
Brass

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable, Standards CSA, FULS Marking, UL
