Shop LEVITON

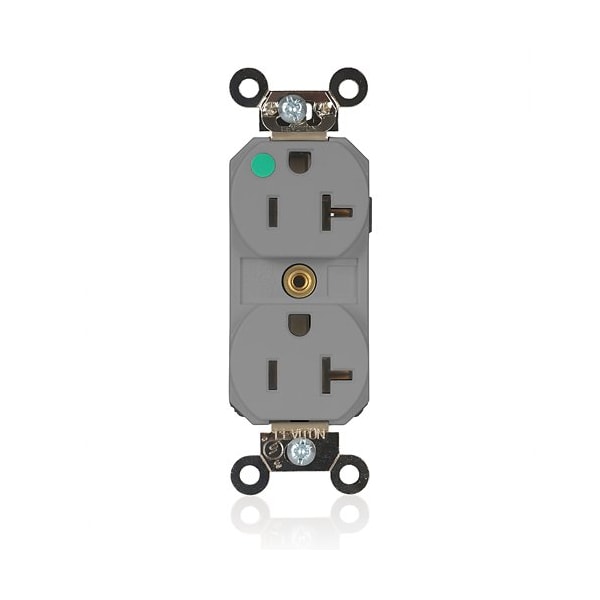

PlugsandReceptacles, 20A, 125VAC, Gry, Nylon

  • Mfr # M8300-ILG

  • Zoro # G322587521

product price:
$
35.79
/ea

Key Features

Wiring Method
Back
Number of Gangs
1
NEMA Receptacle Configuration
5-20R
Face Plate Width
1.5 in
Grounding
Grounded
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
M8300-ILG
Zoro #
G322587521
UPC #
78477553039
Country of Origin
Mexico
Wiring Method
Back
Number of Gangs
1
NEMA Receptacle Configuration
5-20R
Grounding
Grounded
Receptacle Type
Duplex
Surge Protection
No
UL 94 Flammability Rating
V-2
Cover Type
No Cover
Number of Wall Plates Included
0
Minimum Operating Temperature
-40 Degrees C
AFCI
No
Number of Outlets
2
Market
Commercial
Grade
Hospital Grade
Number of Wires
3
Item
Plugs and Receptacles
Flange Type
Non-Flanged
Mount Type
Flush
Wire Connection Type
Snap-In Module
Contact Material
Brass
Voltage Rating
125V AC
GFCI
No
Shrouded
No
Maximum Operating Temperature
60 Degrees C
Housing Material
Nylon
For Environment
Food and Beverage, Oily/Greasy
Housing Color
Gray
Polarized
Yes
NEMA Enclosure Rating
Not Rated
Phase
Single
Features
Smooth Face
Number of Poles
2
IP Rating
Not Rated
Connection Orientation
Straight
Standards
CSA, FULS Marking, UL
Horsepower Rating
1 hp
Current Rating
20 A

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable, Standards CSA, FULS Marking, UL
