Shop LEVITON

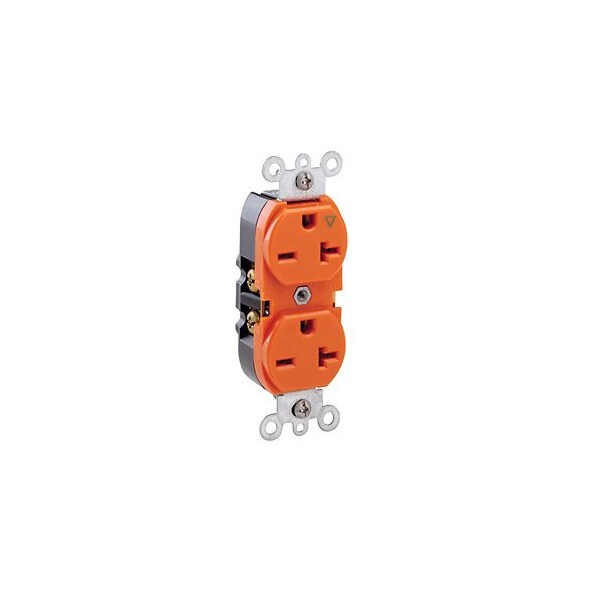

PlugsandReceptacles, 20A, 250VAC, Org, Nylon

  • Mfr # 5462-IG

  • Zoro # G722586810

product price:
$
34.19
/ea

Key Features

Face Plate Height
2.8 in
Maximum Operating Temperature
60 Degrees C
Minimum Wire Size
14 AWG
Shrouded
No
Face Plate Width
1.3 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5462-IG
Zoro #
G722586810
UPC #
78477052570
Country of Origin
Mexico

Dimensions

Face Plate Height
2.8 in
Minimum Wire Size
14 AWG
Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Overall Depth
1.1 in

Details

Maximum Operating Temperature
60 Degrees C
Shrouded
No
Standards
CSA, FULS Marking, UL
Polarized
Yes
NEMA Receptacle Configuration
6-20R
Flange Type
Non-Flanged
Number of Outlets
2
Voltage Rating
250V AC
Resistance Properties
Tamper Resistant
Current Rating
20 A
Wire Connection Type
Screw Terminals
AFCI
No
Market
Industrial
Number of Wall Plates Included
0
Housing Color
Orange
Number of Poles
2
Mount Type
Flush
UL 94 Flammability Rating
V-2
Number of Gangs
1
Receptacle Type
Duplex
NEMA Enclosure Rating
Not Rated
Phase
Single
Contact Material
Phosphor Bronze
Surge Protection
No
Minimum Operating Temperature
-40 Degrees C
Number of Wires
3
Housing Material
Nylon
Grade
Federal Specification
Horsepower Rating
2 hp
Cover Type
No Cover
Features
Smooth Face
Item
Plugs and Receptacles
Connection Orientation
Straight
IP Rating
Not Rated
Wiring Method
Back/Side
For Environment
Food and Beverage, Oily/Greasy
Grounding
Isolated Ground
GFCI
No

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Orange, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 6-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
