Shop LEVITON

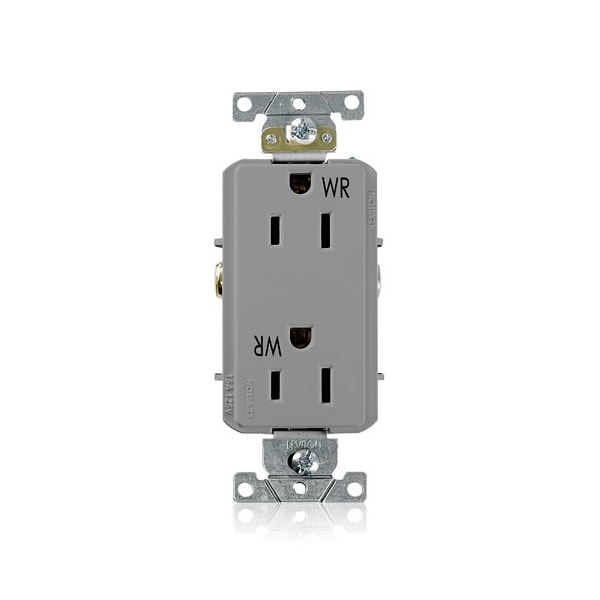

Plugs&Rcptcls, 15A, 125VAC, Gry, PBT, PK1

  • Mfr # WDR15-GY

  • Zoro # G922587198

product price:
$
198.99
/pk of 10, $19.90/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

NEMA Receptacle Configuration
5-15R
Number of Gangs
1
Voltage Rating
125V AC
Polarized
Yes
Grade
General Use
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
WDR15-GY
Zoro #
G922587198
UPC #
78477892480
Country of Origin
Mexico

Dimensions

Face Plate Width
1.6 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Overall Depth
1.1 in
Face Plate Height
2.6 in
Maximum Wire Size
10 AWG

Details

NEMA Receptacle Configuration
5-15R
Number of Gangs
1
Voltage Rating
125V AC
Polarized
Yes
Grade
General Use
Number of Poles
2
For Environment
Food and Beverage, Oily/Greasy
NEMA Enclosure Rating
Not Rated
Minimum Operating Temperature
-40 Degrees C
Cover Type
No Cover
UL 94 Flammability Rating
V-0
Surge Protection
No
Flange Type
Non-Flanged
Resistance Properties
Weather Resistant
Phase
Single
Contact Material
Phosphor Bronze
Shrouded
No
Mount Type
Flush
Features
Smooth Face
Standards
CSA, FULS Marking, UL
Horsepower Rating
1/2 hp
Housing Material
PBT Polyester
Item
Plugs and Receptacles
Housing Color
Gray
Market
Industrial
Number of Wall Plates Included
0
Receptacle Type
Duplex
Grounding
Grounded
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 Degrees C
Wiring Method
Back/Side
IP Rating
Not Rated
Current Rating
15 A
Number of Wires
3
Connection Orientation
Straight
Number of Outlets
2
GFCI
No
AFCI
No

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Weather Resistant, Standards CSA, FULS Marking, UL
