Shop LEVITON

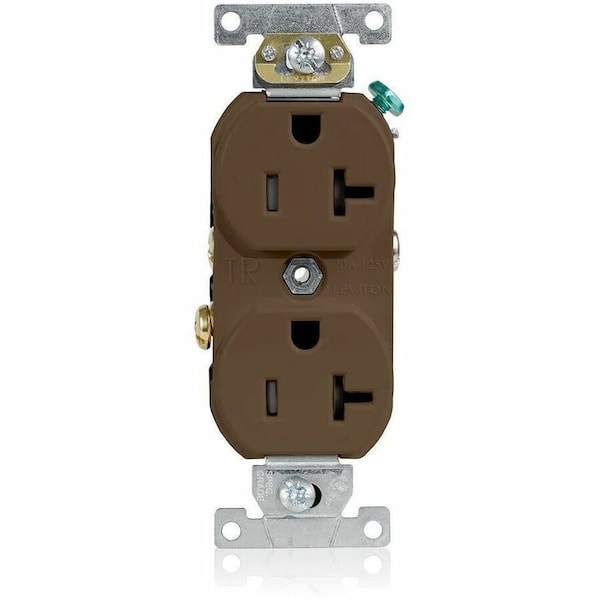

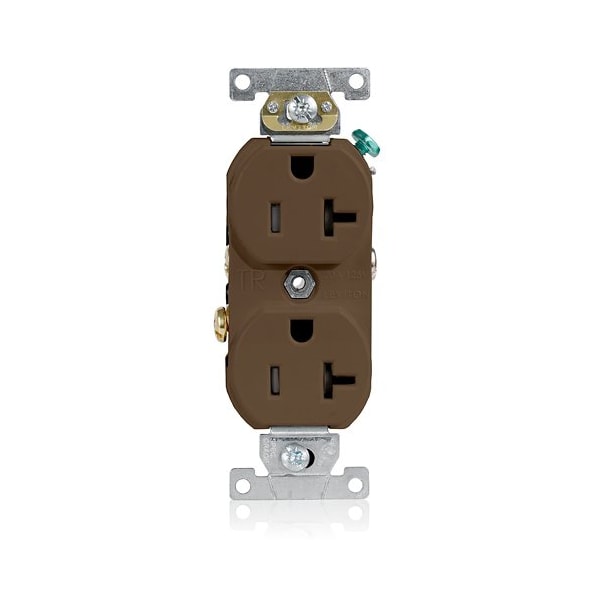

Plugs&Rcptcls, 20A, 125VAC, Brn, Thrmplstc

  • Mfr # TCR20

  • Zoro # G922587150

product price:
$
8.15
/ea

Key Features

UL 94 Flammability Rating
V-2
Number of Wires
3
IP Rating
Not Rated
Connection Orientation
Straight
Cover Type
No Cover
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TCR20
Zoro #
G922587150
UPC #
78477655320
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

UL 94 Flammability Rating
V-2
Number of Wires
3
IP Rating
Not Rated
Connection Orientation
Straight
Cover Type
No Cover
Number of Gangs
1
NEMA Enclosure Rating
Not Rated
Receptacle Type
Duplex
Minimum Operating Temperature
-40 Degrees C
GFCI
No
Number of Poles
2
Resistance Properties
Tamper Resistant
Polarized
Yes
Maximum Operating Temperature
60 Degrees C
Shrouded
No
Horsepower Rating
1 hp
AFCI
No
Wire Connection Type
Screw Terminals
Wiring Method
Side
For Environment
Food and Beverage, Oily/Greasy
Grounding
Grounded
Mount Type
Flush
Features
Smooth Face
Surge Protection
No
Number of Wall Plates Included
0
Contact Material
Brass
Housing Color
Brown
Phase
Single
Market
Commercial
Standards
CSA, FULS Marking, UL
NEMA Receptacle Configuration
5-20R
Item
Plugs and Receptacles
Housing Material
Thermoplastic
Voltage Rating
125V AC
Number of Outlets
2
Grade
General Use
Current Rating
20 A
Flange Type
Non-Flanged

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
