Shop LEVITON

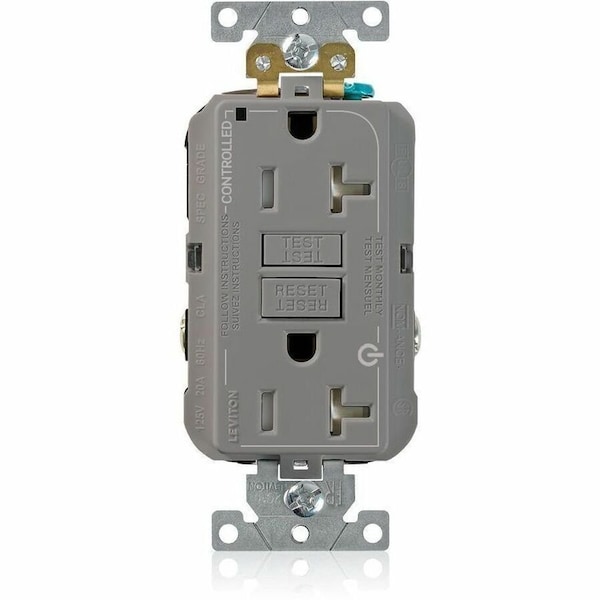

Plugs&Rcptcls, 20A, 125VAC, Gry, Polycarb

  • Mfr # G5362-2TG

  • Zoro # G322586777

product price:
$
57.99
/ea

Key Features

Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-35 Degrees C
Overall Depth
1.4 in
Mount Hole Center-to-Center Height
3.8 in
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
G5362-2TG
Zoro #
G322586777
UPC #
78477398562
Country of Origin
China

Dimensions

Overall Depth
1.4 in
Mount Hole Center-to-Center Height
3.8 in
Face Plate Width
1.7 in
Face Plate Height
2.8 in

Details

Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-35 Degrees C
Phase
Single
Receptacle Type
Duplex
Wiring Method
Back/Side
Standards
CSA, FULS Marking, UL
Features
Power Indication
Number of Wires
3
Maximum Operating Temperature
66 Degrees C
Voltage Rating
125V AC
Grounding
Grounded
Polarized
Yes
Contact Material
Brass
AFCI
No
Number of Wall Plates Included
0
Mount Type
Flush
Flange Type
Non-Flanged
Connection Orientation
Straight
Number of Outlets
2
Current Rating
20 A
Resistance Properties
Tamper Resistant
For Environment
Food and Beverage, Oily/Greasy
Self Testing
Yes
Maximum Surge Current
10 kA
Number of Gangs
1
NEMA Receptacle Configuration
5-20R
Housing Color
Gray
Horsepower Rating
1 hp
Number of Poles
2
IP Rating
Not Rated
Surge Protection
No
Cover Type
No Cover
Housing Material
Polycarbonate
Grade
General Use
NEMA Enclosure Rating
Not Rated
Item
Plugs and Receptacles
Market
Industrial
Shrouded
No
GFCI
Yes

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
