Shop LEVITON

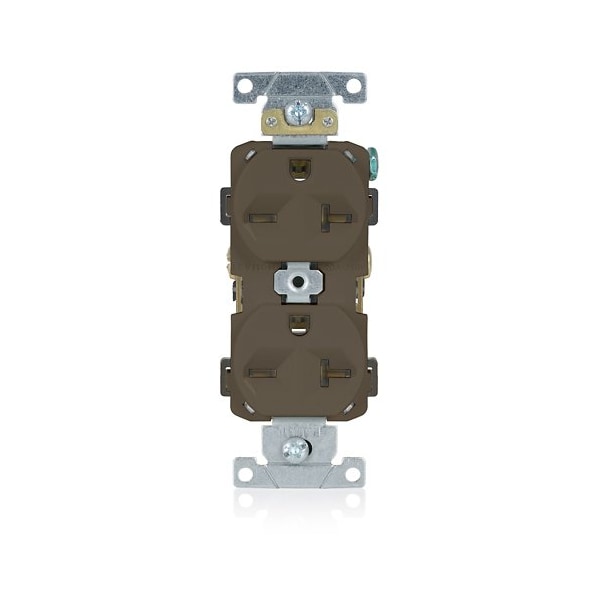

Plugs&Rcptcls, 20A, 250VAC, Brn, Plyprpyln

  • Mfr # 5822

  • Zoro # G122587202

product price:
$
16.35
/ea

Key Features

UL 94 Flammability Rating
V-2
Mount Hole Center-to-Center Height
3.3 in
Contact Material
Brass
Polarized
Yes
Minimum Wire Size
14 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5822
Zoro #
G122587202
UPC #
-
Country of Origin
Mexico
UL 94 Flammability Rating
V-2
Contact Material
Brass
Polarized
Yes
Cover Type
No Cover
Mount Type
Flush
Wire Connection Type
Screw Terminals
Horsepower Rating
2 hp
Wiring Method
Side
Current Rating
20 A
Phase
Single
NEMA Enclosure Rating
Not Rated
Housing Material
Polypropylene
GFCI
No
Market
Commercial
Standards
CSA, FULS Marking, UL
Grounding
Grounded
Number of Wires
3
Housing Color
Brown
Minimum Operating Temperature
-40 Degrees C
Number of Outlets
2
Connection Orientation
Straight
Grade
General Use
For Environment
Food and Beverage, Oily/Greasy
AFCI
No
Features
Indented Face
Voltage Rating
250V AC
Surge Protection
No
IP Rating
Not Rated
Shrouded
No
Number of Gangs
1
Maximum Operating Temperature
60 Degrees C
Number of Wall Plates Included
0
NEMA Receptacle Configuration
6-20R
Flange Type
Non-Flanged
Resistance Properties
Tamper Resistant
Receptacle Type
Duplex
Number of Poles
2
Item
Plugs and Receptacles

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Polypropylene, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 6-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
