Outlet Type - Plugs and Receptacles
|
Duplex
|
Color - Plugs and Receptacles
|
White
|
Wiring Method - Plugs and Receptacles
|
Back and Side
|
Tamper Resistant
|
Yes
|
HP
|
1 hp
|
Special Features
|
Custom Designed Lenses with Edge-Mounted LEDs, Dual Lens, Saves Space, Sensor Provides Automatic ON/OFF Illumination
|
Number of Poles
|
2
|
Standards
|
ANSI C73, CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, NOM-ANCE, UL 498, UL 943, UL Listed
|
Color
|
White
|
Wiring Method
|
Back, Side
|
Amps - Plugs and Receptacles
|
20 A
|
Item
|

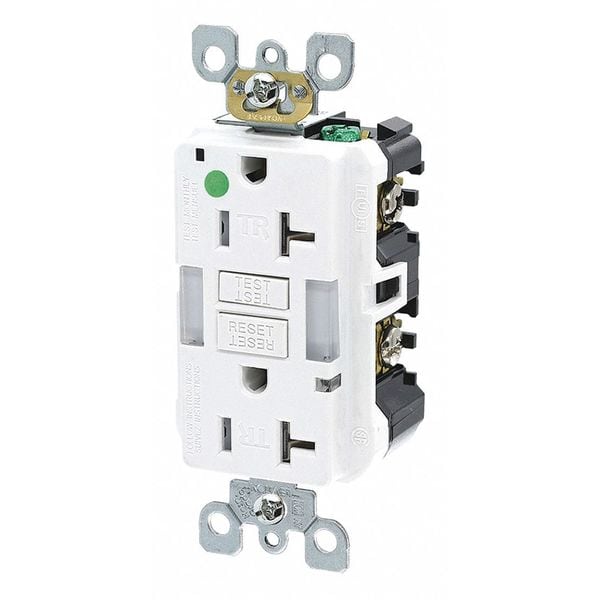

GFI Receptacle
|
Self-Testing
|
Yes
|
Voltage
|
125 VAC
|
Power Indicator
|
Yes
|
Item - Plugs and Receptacles
|
GFCI Receptacle
|
Number of Wires
|
3
|
Surge Suppression
|
Yes
|
Voltage - Plugs and Receptacles
|
125V
|
Weather Resistant - Plugs and Receptacles
|
No
|
NEMA Receptacle Configuration - Plugs and Receptacles
|
5-20R
|
NEMA Configuration
|
5-20
|
Application Environment
|
Hospital Grade
|
Mount Type
|
Flush
|
Key Resistance Properties
|
Tamper Resistant
|
Self Testing
|
Yes
|
Horsepower Rating
|
1 hp
|
Number of Outlets
|
2
|
Visual Indicator Lights
|
Power Connected
|
Grounding
|
Grounded
|
Number of Poles & Wires
|
2 Pole / 3 Wire
|
Maximum Operating Temperature
|
150.8 Degrees F
|
Receptacle Type
|
Decorator Duplex
|
Surge Protection
|
Yes
|
UL 94 Flammability Rating
|
V-0
|
Includes
|
Strap Material
|
Housing Color
|
White
|
Voltage Rating
|
125V AC
|
Housing Material
|
Polycarbonate
|
Phase
|
Single
|
Connection Orientation
|
Straight
|
Wire Connection Types
|
Screw Terminals
|
Contact Material
|
Brass
|
Grade
|
Hospital Grade Fed. Spec.
|
Minimum Operating Temperature
|
-31 Degrees F
|
NEMA Receptacle Configuration
|
5-20R
|
Wire Connection Type
|
Screw Terminals
|
Additional Electrical Protection
|
GFCI, Surge Protection
|
Current Rating
|
20 A
|
Includes Mounting Hardware
|
Yes
|
Resistance Properties
|
Tamper Resistant
|
GFCI
|
Yes
|
Polarized
|
Yes
|
Cover Type
|
No Cover
|
NEMA Enclosure Rating
|
Not Rated
|
Device Type
|
Duplex Receptacle Outlet
|
Shutter Mechanism
|
Delrin® Acetal
|
NEMA
|
WD-1 & WD-6
|
Body Material
|
Polycarbonate
|
Terminal Accom.
|
14-10 AWG solid or stranded
|
Certification/Listing
|
UL, CSA, NOM-ANCE
|
Line Contacts
|
Brass
|
Pole
|
2
|
Terminal Clamp
|
Brass
|
Function
|
GFCI
|
Operating Temperature
|
-35C to +66C
|
Amperage
|
20 A
|
Termination
|
Back or Side Wire
|
Feature
|
Tamper-Resistant|Power Indication
|
Ground Clips
|
Brass
|
Flammability
|
Rated V-0 per UL 94
|
Grounding Screw
|
Plated Steel
|
Strap Material
|
Galvanized Steel
|
Terminal ID
|
Brass-Hot, Green-Ground, Silver-Neutral
|
Short Circuit Current Rating
|
10kA
|
Face Material
|
PBT
|
Applicable Standards
|
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
|
ANSI
|
C-73
|
Wire
|
3
|
Screw Terminal Torque
|
14-18 in-lbs
|
Terminal Screws
|
Plated Steel
|
At Rated Voltage
|
1 HP
|
