  11. Straight Blade Receptacle, 18-60R, 60 A, 120/208V AC, 4 Pole, 4 Wire, Flush Mount, Non-Grounded

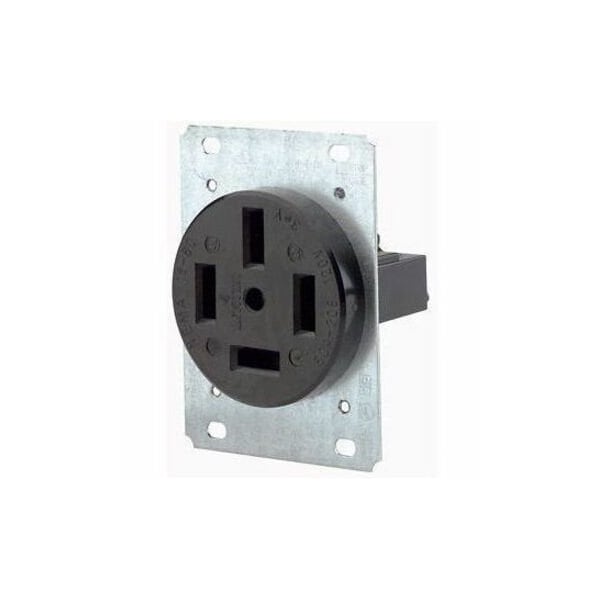

Leviton Straight Blade Receptacle, 18-60R, 60 A, 120/208V AC, 4 Pole, 4 Wire, Flush Mount, Non-Grounded 8360 - main

Straight Blade Receptacle, 18-60R, 60 A, 120/208V AC, 4 Pole, 4 Wire, Flush Mount, Non-Grounded

  • Mfr # 8360

  • Zoro # G504393322

product price: $89.96
/ea
Free Shipping & Returns

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
18-60R
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
8360
Zoro #
G504393322
UPC #
07847784329
Country of Origin
Mexico

Dimensions

Minimum Wire Size
4 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
18-60R
Current Rating
60 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Non-Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NOM 057 Certified, UL 498 File E13399
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
HP
7 1/2 hp
Sub-Category
Single Receptacles
Outlet Type - Plugs and Receptacles
Single
Number of Gangs
1
NEMA Receptacle Configuration - Plugs and Receptacles
18-60R
Application Environment
Industrial
Material
Nylon (Body and Face)
Mounting Type - Plugs and Receptacles
Flush
Wiring Method - Plugs and Receptacles
Side
Grade
Federal Specification
AFCI
No
Flange Shape
Rectangular
Surge Protection
No
UL 94 Flammability Rating
V-2
Number of Outlets
1
Cover Type
No Cover
Connection Orientation
Straight
Hub Type
Dead End
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
Maximum Operating Temperature
140 Degrees F
Contact Material
Brass
Polarized
Yes
Horsepower Rating
7 1/2 hp
Market
Industrial
Shrouded
No
GFCI
No
NEMA Enclosure Rating
Not Rated
Current Limiting
Full Rated Current
Terminal Accom.
Up to 4 AWG
Torque Range
25 in-lbs
Temperature Rise
Max 30C after 50 cycles OL at 150 percent rated current
Wire
4
Device Type
Straight Blade Receptacle
Face Material
Nylon
Pole
4
At Rated Voltage
7-1/2 HP
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
UL498
File E13399
Line Contacts
Brass Double-Wipe
ANSI
C-73
Operating Temperature
-40°C to 60°C
Dielectric Voltage
Withstands 2000V per UL498
Strap Material
Galvanized Steel
Body Material
Nylon
CSA C22.2 No. 42
File 152105

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 60 A, GFCI No, Grounding Non-Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 18-60R, Number of Gangs 1, Number of Poles 4, Number of Wires 4, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Tamper Resistant
