  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

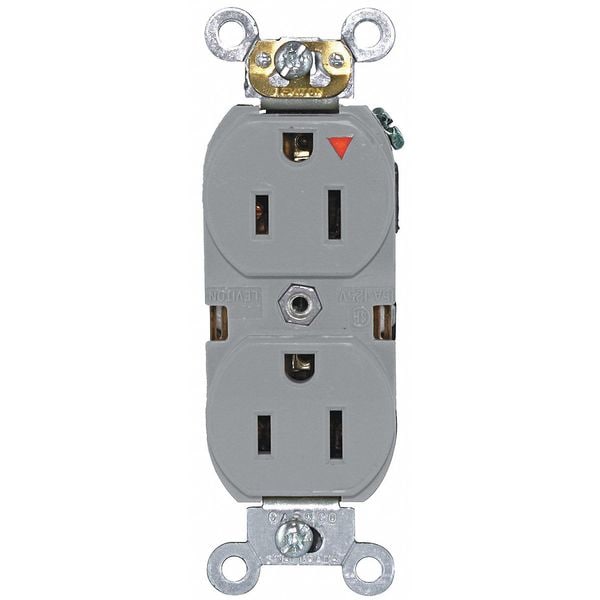

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground 5262-IGG - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

  • Mfr # 5262-IGG

  • Zoro # G004256080

product price: $8.69
/ea
Sold in multiples of 10 for $86.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5262-IGG
Zoro #
G004256080
UPC #
07847705309
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Face Plate Height
2.8 in
Maximum Wire Size
10 AWG
Overall Depth
1.1 in
Face Plate Width
1.4 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Gray
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL Federal Specification WC-596
Flange Type
Non-Flanged
Application Environment
Heavy-Duty Industrial Grade
Sub-Category
Duplex Receptacles
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
HP
1/2 hp
Outlet Type - Plugs and Receptacles
Duplex
Material
Thermoplastic Nylon (Body and Face)
Number of Outlets
2
Housing Material
Thermoplastic
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
Grade
Federal Specification
Connection Orientation
Straight
Horsepower Rating
1/2 hp
Maximum Operating Temperature
140 Degrees F
GFCI
No
Contact Material
Phosphor Bronze
UL 94 Flammability Rating
V-2
Cover Type
No Cover
Includes
Strap Material
Polarized
Yes
NEMA Enclosure Rating
Not Rated
Market
Commercial, Industrial
Isolated Ground System
Brass
Grounding Screw
Brass 8-32
Device Type
Duplex Receptacle Outlet
Face Material
Thermoplastic Nylon
CSA C22.2 No. 42
File 152105
UL498
File E13399
Feature 4
Smooth Face
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Function
Isolated Ground
Body Material
Thermoplastic Nylon
Current Limiting
Full Rated Current
Flammability
Rated V-2 per UL 94
Torque Range
14-16 inch pounds
Pole
2
Terminal Screws
Plated Brass
Clamp Nuts
Galvanized Steel
Screw Terminal Torque
14-18 in-lbs
Strap Material
Galvanized Steel
Operating Temperature
-40°C to 60°C
Terminal Accom.
14-10 AWG
Line Contacts
Phosphor Bronze
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
At Rated Voltage
1/2 HP
ANSI
C-73
Termination
Back or Side Wire
Dielectric Voltage
Withstands 2000V per UL498
Wire
3

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
