  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

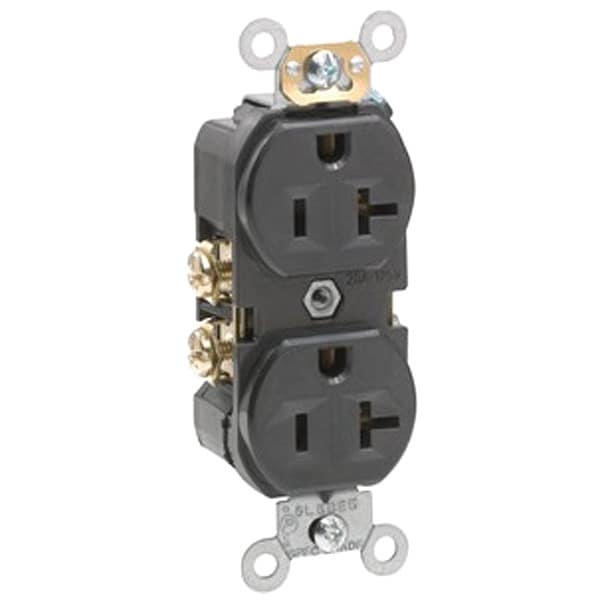

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded BR20-E - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # BR20-E

  • Zoro # G304256018

product price: $3.59
/ea
Sold in multiples of 10 for $35.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR20-E
Zoro #
G304256018
UPC #
07847781982
Country of Origin
United States

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-1 and WD-6, UL 498 File E13399
Flange Type
Non-Flanged
Special Features
Indented Face
Application Environment
Commercial
Sub-Category
Duplex Receptacles
HP
1 hp
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Material
Polypropylene (Body and Face)
Outlet Type - Plugs and Receptacles
Duplex
Grade
Federal Specification
Horsepower Rating
1 hp
Connection Orientation
Straight
Maximum Operating Temperature
140 Degrees F
NEMA Enclosure Rating
Not Rated
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Contact Material
Brass
GFCI
No
Market
Commercial
Number of Outlets
2
Housing Material
Polycarbonate
Cover Type
No Cover
At Rated Voltage
1 HP
Clamp Nuts
Brass
UL498
File E13399
Strap Material
Zinc-Plated Steel
Terminal Screws
Brass 8-32
Current Limiting
Full Rated Current
Pole
2
Terminal Accom.
14-10 AWG
Body Material
Polypropylene
Termination
Back or Side Wire
Device Type
Duplex Receptacle Outlet
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Line Contacts
Brass Triple-Wipe .031 Thick
Grounding Screw
Steel 8-32
ANSI
C-73
Screw Terminal Torque
14-18 in-lbs
Face Material
Polypropylene
CSA C22.2 No. 42
File 152105
Wire
3
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Ground Clips
Brass
Dielectric Voltage
Withstands 2000V per UL498
Operating Temperature
-40°C to 60°C
Feature 4
Indented Face

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
